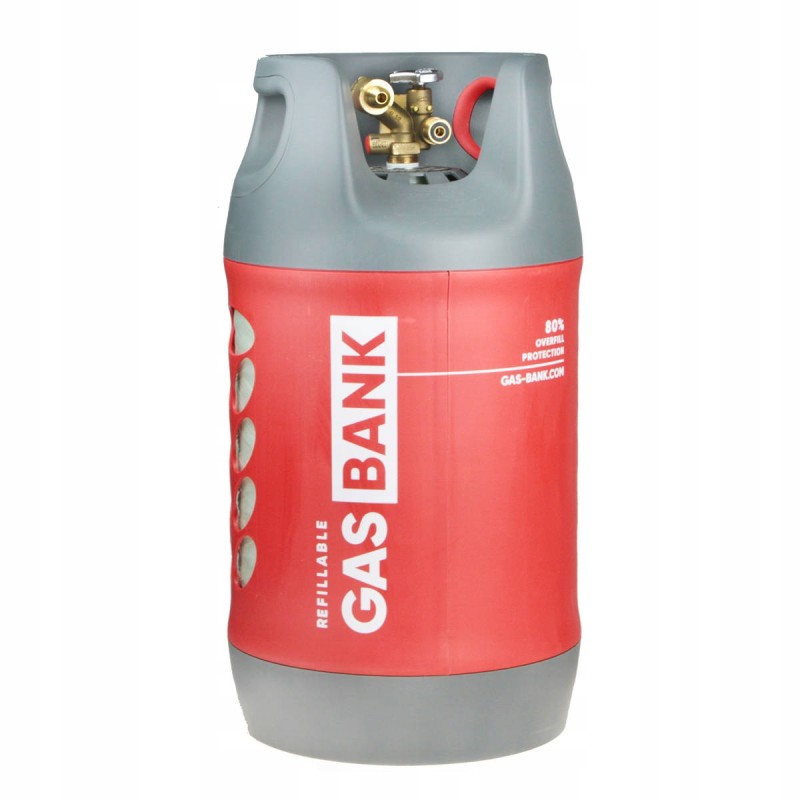

Gasbank Duo composite cylinder 11 kg LPG

GasBank DUO composite cylinder 11 kg LPG gas cylinder with inlet and outlet, without level indicator for self-filling with cut-off valve at 80% filling - OPD GasBank DUO 11kg - LPG gas cylinder with multi-valve GasBank - Ultra-light composite LPG gas cylinder with a filling limit valve to 80% (OPD)

Gas cylinders can be filled at LPG stations. Perfect for grilling, camping, cooking, heating in your home, caravan, motorhome, boat, industrial burner and/or any application anywhere a standard LPG cylinder can be used.

The cylinder is made of lightweight composite material to ensure durability and high protection requirements.

Safety features The GASBANK valve, unlike valves in standard LPG cylinders, has a unique OPD system enabling safe filling at any LPG station.

The automatic OPD (overfill protection) valve automatically stops filling when the gas level reaches 80%.

What is the difference between SINGLE, MULTI and DUO cylinders?

MULTI cylinders have a separate gas input with a non-return valve and a separate output to the reducer, they are also equipped with a level indicator, a manual shut-off valve, a separate input and output.

DUO cylinders also have a separate gas input with a non-return valve and a separate output to the reducer, a manual shut-off valve, a separate input and output, but they do not have a gas level indicator,

SINGLE cylinders are equipped with one connection that is both the input and output of gas from the cylinder. Both types of cylinders are equipped with safety relief valves.

How does the DUO cylinder work?

DUO cylinders have a separate input and output, so they can be filled without disconnecting from the installation and connected to each other to increase the total capacity.

How to fill a DUO cylinder?

DUO cylinders can be filled via a remote refueling valve or adapters screwed directly onto the cylinder

Do I have to disconnect the output when refilling gas in Gasbank DUO?

There is no need to disconnect the DUO cylinder from the installation during filling, it is recommended to close the outlet valve (blue), but it is not necessary.

Technical Specification

DUO valve type

Cylinder height (mm): 571

Cylinder diameter (mm): 310

Weight of empty cylinder (kg): 5.80

Capacity - LPG (litres): 19.5

Capacity - Propane (kg): 11

Water capacity of the tank (L): 24.4

Return valve

Manual shut-off valve

Gas flow limit valve (SBS): NO

Pressure safety valve (PRV)

Automatic shut-off valve at 80% level - OPD

DIN outlet (G12 KLF) (W21.8 x 1/14 lh)

Input external thread JIC 3/4UNF

LPG level indicator: NO

Material: PET
