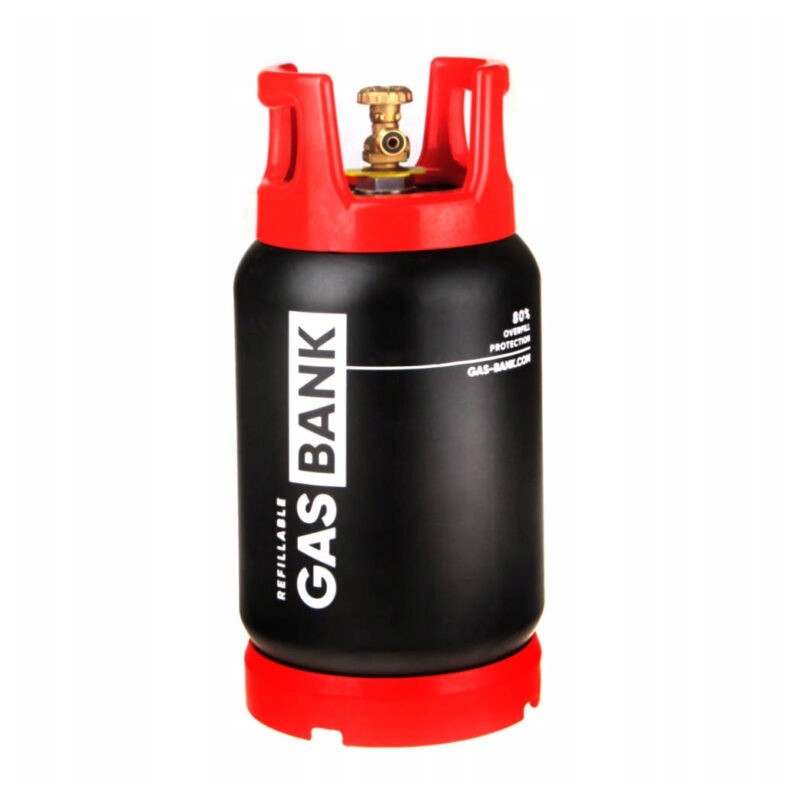

Kevlar gasbank single slim 5kg cylinder

GasBank Single SLIM - Kevlar LPG gas cylinder with a filling limit valve up to 80% (OPD)

Gas cylinder that can be filled at LPG stations.

The cylinder is made of a light composite material ensuring durability and meeting high protection requirements. Low weight, combined with practical handles, guarantees convenient transport of the gas cylinder. Perfect for grilling, camping, cooking, heating at home, in a caravan, camper or boat, for industrial burners and for any application wherever a standard cylinder can be used LPG.

Safe filling of LPG throughout Europe

The cylinder is equipped with the most popular G12 inlet and outlet valve in Europe with a rubber seal, also known as KLF - Kleinflashe (G.12). The valve thread is 21.8mm x 1/14 LH. This type of valve is used in countries such as: Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Ireland, Luxembourg, Netherlands, Norway, Poland, Russia, Serbia, Slovenia, Spain, Switzerland, UK.

Safety features

Automatic OPD valve (overfill protection) automatically stops filling when the gas level reaches 80%.

The GASBANK valve, unlike valves on standard LPG cylinders, has a unique OPD system enabling safe filling at any LPG station.

The automatic OPD valve (overfill protection) stops filling when the gas level reaches 80%.

Sustainable development

By using the GasBank Slim cylinder, it is worth knowing that you save 71% of CO2 compared to the steel equivalent. And this is even if we ignore the recycling of GasBank Slim cylinders (which is 100%!). The main factors contributing to such a low environmental impact are:

Zero emissions and waste during production

80% weight reduction compared to steel

No maintenance required (no corrosion, no painting)

Possibility of full recycling (the only composite technology, that offers it)

Energy footprint

A highly efficient production process that does not require any heating or cooling cycles, is completely emission-free and reduces energy consumption by over 80% compared to steel or conventional composite technology. This technology is the most environmentally friendly technology for storing and transporting compressed gases. Definitely.

Dimensions

Cylinder height (mm) 495

Cylinder diameter (mm) 230

Technical specification

SINGLE valve type

Empty cylinder weight (kg) 4.1

Capacity - LPG (liters) 9.76

Capacity - Propane (kg) 5

Water capacity of the tank (L) 12.2

Minimum Burst Pressure 72 Bar (ISO 11119-3:2013)

Applicable standards ISO 11119-3:2013, ADR 2019, Directive 2010/35/EU

UN standard 1011, 1075, 1965, 1969 , 1978

Valve Inlet Thread 25E ISO 11363-1

Valve Outlet Connection G.12 EN15202

Valve Mounting Torque 170 Nm Max.
