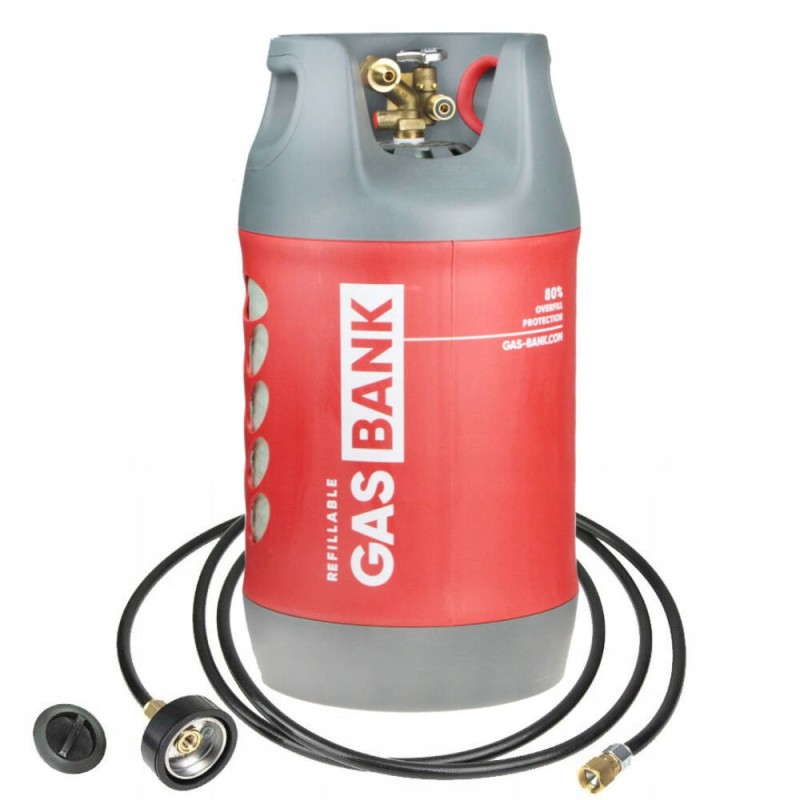

Gasbank duo composite cylinder 11kg 24l remote refueling set

GasBank DUO 11kg - LPG gas cylinder

Composite cylinder GasBank DUO 11 kg LPG gas cylinder with input and output, without level indicator for self-filling with cut-off valve at 80% filling - OPD

The cylinder is made of light composite material to ensure durability and high protection requirements.

Safe filling of LPG throughout Europe

Gas cylinders that can be filled at LPG stations. Perfect for grilling, camping, cooking, heating in your home, caravan, camper, boat, industrial burner and/or for any application anywhere a standard LPG cylinder can be used.

The cylinder is equipped with a certified gas multivalve with a separate entry and exit.

The GASBANK valve, unlike valves in standard LPG cylinders, has a unique OPD system enabling safe filling at any LPG station.

The automatic OPD valve (overfill protection) automatically stops filling when the gas level reaches 80%.

How it works DUO cylinder?

DUO cylinders have a separate input and output, so they can be filled without disconnecting from the installation and connected together to increase the total capacity.

How to fill a DUO cylinder?

DUO cylinders can be filled via a remote refueling valve or direct-screw-on adapters per cylinder

What is the difference between SINGLE, MULTI and DUO cylinders?

MULTI cylinders have a separate gas input with a non-return valve and a separate outlet to the reducer, they are also equipped with a level indicator, a manual cut-off valve, a separate input and output.

DUO cylinders they also have a separate gas input with a non-return valve and a separate output to the reducer, a manual shut-off valve, a separate input and output, but they do not have a gas level indicator, SINGLE cylinders are equipped with one connection that is both the input and output of gas from the cylinder. Both types of cylinders are equipped with safety relief valves.

Valve type DUO

Cylinder height (mm) 571

Cylinder diameter (mm) 310

Weight of empty cylinder (kg) 5.80

Capacity - LPG (liters) 19.5

Capacity - Propane (kg) 11

Tank water capacity (L) 24.4

Non-return valve

Manual shut-off valve

Gas flow limit valve (SBS) NO

Pressure safety valve (PRV)

Automatic shut-off valve at level 80% - OPD

DIN output (G12 KLF) (W21.8 x 1/14 lh)

JIC 3/4UNF external thread input

LPG level indicator NO

PET material

GasBank Multi single cylinder refueling set , Duo, Alugas, or suspended, with JIC - 3/4UNF type input thread. DISH type refueling valve valid in Poland, Lithuania, Latvia, Estonia, Czech Republic, Bulgaria, Hungary, Greece, Croatia, Italy, France.

The DISH refueling valve has an M10 x 1.5 internal thread for using adapters for other countries.

The set includes:

DISH m10 refueling valve (round, fits at LPG stations in Poland)

thermoplastic hose 8mm - 1.5mb

bottle nut 3/4 UNF / PVC Ø8

The set is delivered in elements.
