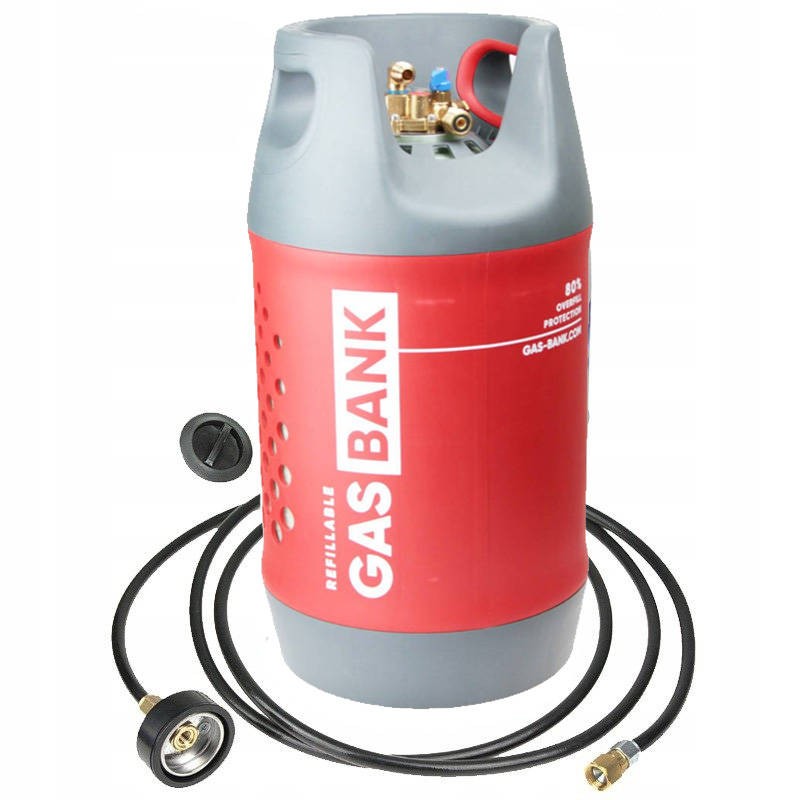

Gasbank multi 11kg composite cylinder, remote refueling set

GasBank MULTI 11kg - LPG gas cylinder LPG gas cylinder with multi-valve for self-filling with cut-off valve at 80% filling - OPD

GasBank – Ultra-light composite LPG gas cylinder with an 80% filling limit valve (OPD)

Gas cylinders can be filled at LPG stations. Perfect for grilling, camping, cooking, heating in your home, caravan, motorhome, boat, industrial burner and/or any application anywhere a standard LPG cylinder can be used.

The cylinder is made of lightweight composite material to ensure durability and high protection requirements.

Safe filling of LPG throughout Europe

The cylinder is equipped with a certified gas multivalve with separate input and output

Safety features

GASBANK valve, unlike valves in standard LPG cylinders, has a unique OPD system enabling safe filling at any LPG station.

The automatic OPD valve (overfill protection) automatically stops filling when the gas level reaches 80%.

What is the difference between SINGLE and MULTI cylinders?

MULTI cylinders have separate gas input with non-return valve and separate output to the reducer, they are also equipped with a level indicator, manual shut-off valve, separate input and output. SINGLE cylinders are equipped with one connection that is both the input and output of gas from the cylinder. Both types of cylinders are equipped with safety relief valves.

How does a MULTI cylinder work?

MULTI cylinders have a separate input and output, so they can be filled without disconnecting from the installation and connected to each other to increase the total capacity.

How to fill a MULTI cylinder?

MULTI cylinders can be filled via a remote refueling valve or adapters screwed directly onto the cylinder

Do I have to disconnect the output of Gasbank MULTI when refilling gas?

It is not necessary to disconnect the MULTI cylinder from the installation during filling, it is recommended to close the output valve (blue) but not this is necessary.

Technical Specification

MULTI valve type

Cylinder height (mm) 571

Cylinder diameter (mm) 310

Weight of empty cylinder (kg) 5.65

Capacity - LPG (liters) 19.5

Capacity - Propane (kg) 11

Tank water capacity (L) 24.4

Check valve

Manual shut-off valve

Gas flow limit valve (SBS)

Pressure safety valve (PRV)

Automatic shut-off valve at 80% level - OPD

DIN output (G12 KLF) (W21.8 x 1/14 lh)

JIC 3/4UNF external thread input

LPG level indicator

PET material

GasBank Multi, Duo, Alugas, or single cylinder refueling set suspended, with JIC - 3/4UNF type input thread.

DISH type refueling valve valid in Poland, Lithuania, Latvia, Estonia, Czech Republic, Bulgaria, Hungary, Greece, Croatia, Italy, France.

Thread in the DISH refueling valve internal M10 x 1.5 for using adapters for other countries.

The set includes:

DISH m10 refueling valve (round, fits at LPG stations in Poland)

thermoplastic hose 8mm - 1.5mb

nut for 3/4 UNF / PVC cylinder Ø8

The set is delivered in elements.
