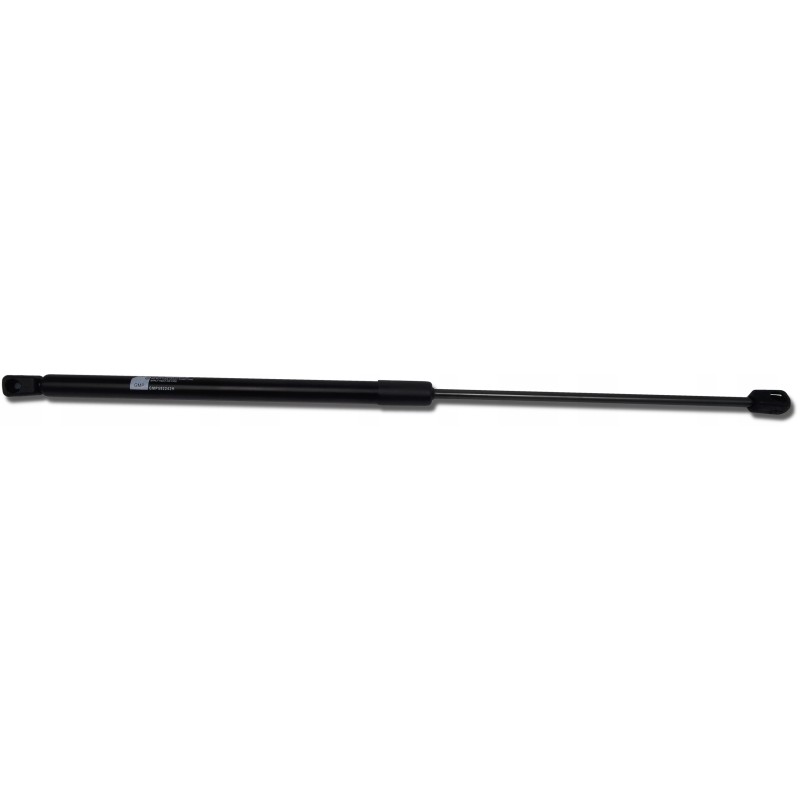

Gas actuator 600mm 150n sunroof window doors

Universal gas actuator for FENDT CASE DEUTZ PRONAR URSUS MTZ tractors SKRAW-MET code: [3176]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with FENDT, CASE, DEUTZ, PRONAR, URSUS, MTZ tractors

Gas actuators are adapted to depending on the model, to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: windows, doors, sunroof in FENDT, CASE tractors, DEUTZ, PRONAR, URSUS, MTZ.

Technical specifications: Length of the folded cylinder: 350 mm

Length of the unfolded cylinder: 600 mm

Cylinder stroke: 250 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Mounting hole diameter: 10 mm

Temperature range: - 20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source whatsoever.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide use and versatility, from agricultural machines to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
