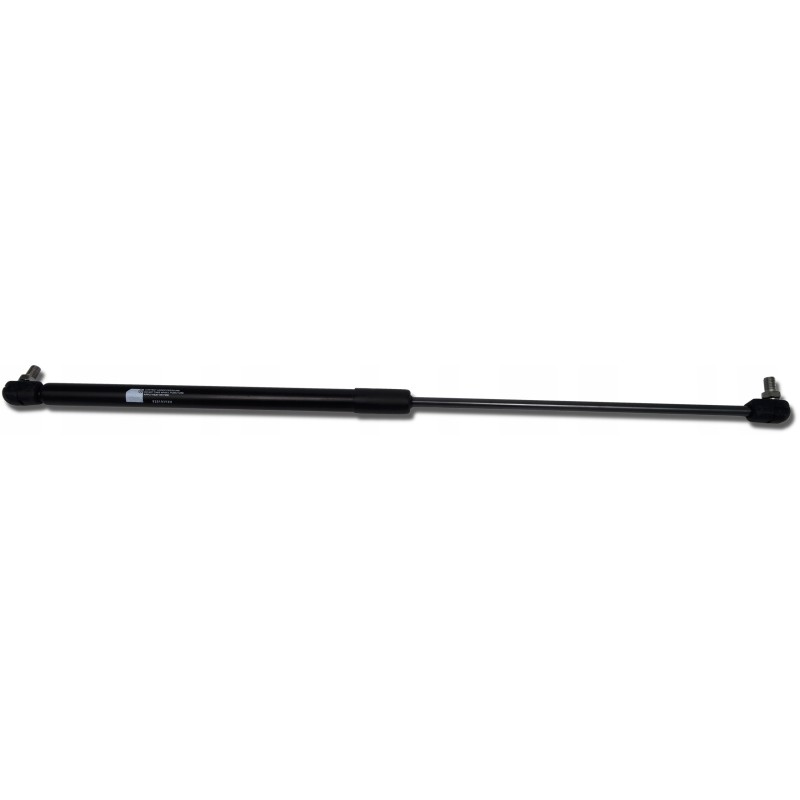

Gas actuator 585mm 200n rear window case fiat

Rear window gas actuator on CASE, FIAT, FORD, NEW HOLLAND tractorsSKRAW-MET CODE: [3191]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with CASE, FIAT, FORD, NEW HOLLAND tractors

CASEMXM120, MXM130, MXM135 , MXM140, MXM150, MXM155, MXM165, MXM175, MXM180, MXM190

FIATL60, L65, L75, L85, L95, M100, M115, M135, M160

FORD4635, 4835, 5635, 6635, 7635, 5640, 6640, 7740, 7840 , 8240, 8340, 8160, 8260, 8360, 8560, L60, L65, L75, L85, L95, M100, M115, M135, M160, TL100, TL100 A, TL70, TL70 A, TL80, TL80 A, TL90, TL90 A , TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM165, TM175, TM180, TM190, TS100, TS110, TS115, TS120, TS80, TS90

Depending on the model, gas actuators are adapted to work in: machines agricultural, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: rear windows of CASE, FIAT, FORD, NEW HOLLAND tractors.

Technical specifications: Length of the folded actuator : 320mm

Cylinder extended length: 585 mm

Cylinder stroke: 265 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Diameter of mounting sockets: 8 mm

Temperature range: -20°C to +70°C

Dimensions (including folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation .

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
