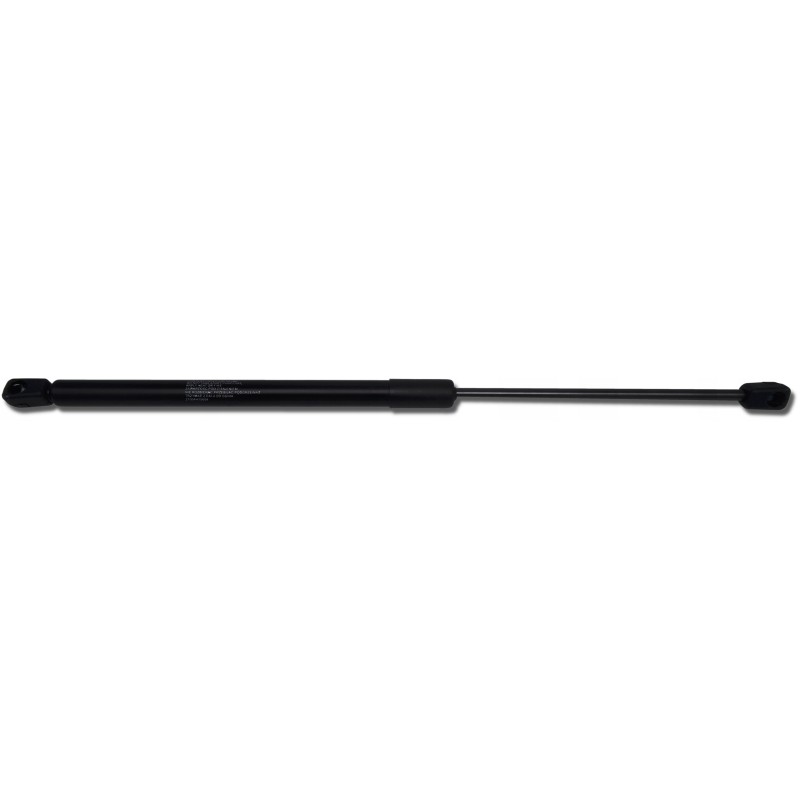

Gas actuator 500mm 200n ursus rear door window

Gas actuator for the rear window or door of URSUS C-385 tractors. SKRAW-MET CODE: [3178]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with URSUS tractors:

932 - 1634, 3512, 5314.

Gas actuators are adapted to depending on the model, to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: rear window or doors of URSUS tractors.

Technical specifications: Length of the folded cylinder: 300mm

Length of the unfolded cylinder: 500 mm

Cylinder stroke: 200 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Mounting socket diameter: 10 mm

Temperature range: -20°C to +70°C

Dimensions (m (e.g. a folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick assembly.

Wide use and versatility, from agricultural machinery to furniture.

Adjusted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
