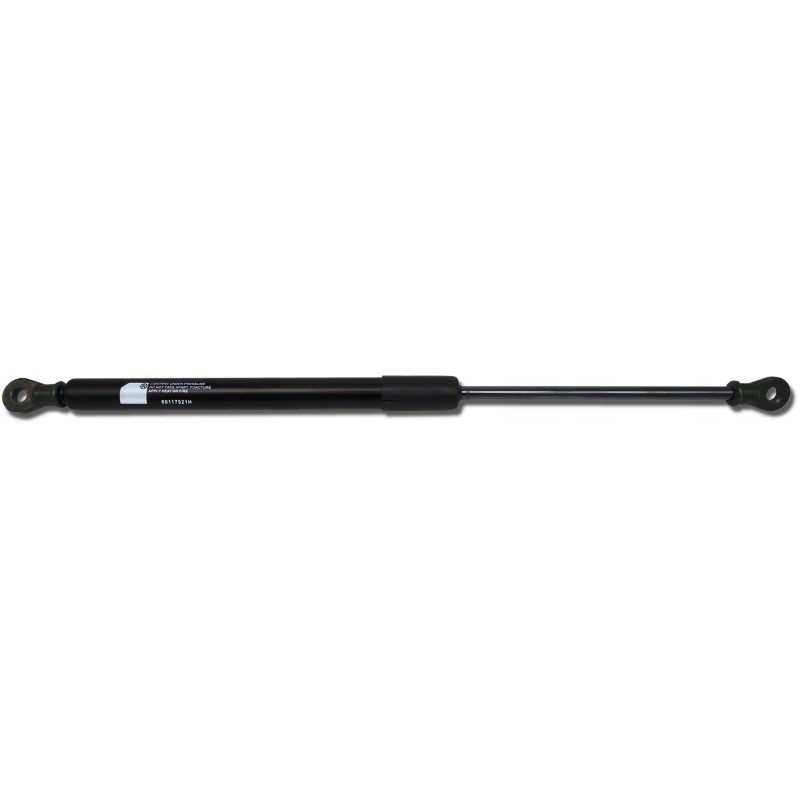

Gas actuator 420mm 200n rear window door zetor

ZETOR tractor door gas actuator SKRAW-MET code: [3171]_________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with ZETOR tractors in models:

3320, 3340, 4320, 4340,5011 5211, 5245, 5320, 5340, 6211 , 6245, 6320, 6340, 7211, 7245, 7320, 7340, 7520, 7540, 7711, 7745, 8520, 8540, 9520, 9540, 10520, 10540

Depending on the model, gas actuators are adapted to work in: machines agricultural, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors and rear window of ZETOR tractors.

Technical specifications: Length of the folded actuator: 260 mm

Length of the unfolded actuator: 420mm

Cylinder stroke: 154 mm

Piston diameter: 8 mm

Cylinder diameter: 18 mm

Mounting socket diameter: 8 mm

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machinery for furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
