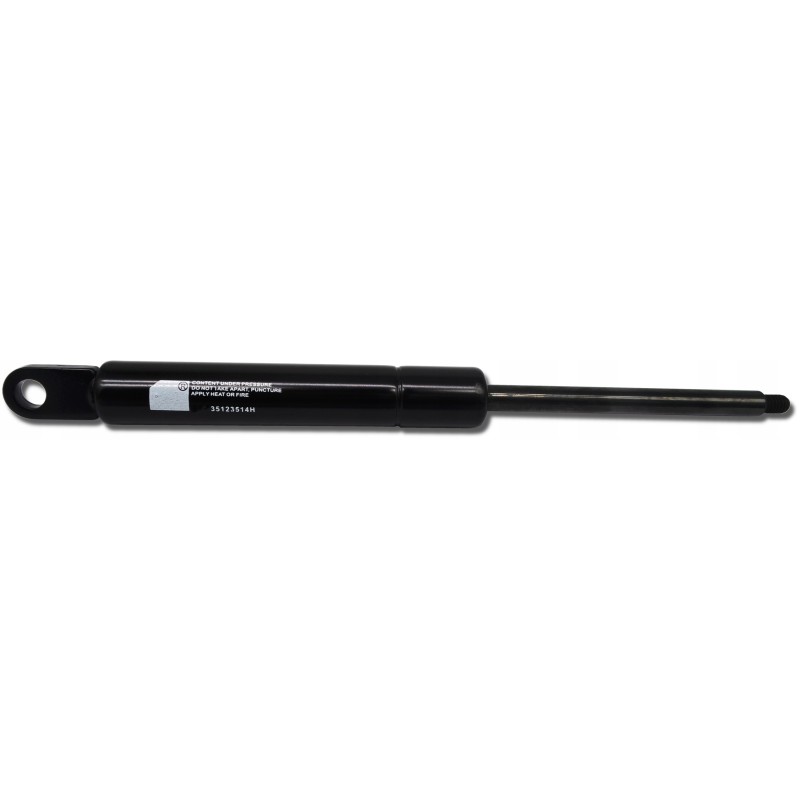

Gas engine 220mm 130n door roof Ursus 3512

Gas actuator for doors and roof in URSUSKOD SKRAW-MET tractors: [3185]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with URSUS tractors and models:

2812, 3512, 3514, 4512, 4514, 5314, 5714

Depending on the model, gas actuators are adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors and roof in URSUS tractors.

Technical specifications: Length of the folded cylinder: 135mm

Length of the unfolded cylinder: 220 mm

Cylinder stroke: 85 mm

Piston diameter: 8 mm

Cylinder diameter: 19 mm

Bore diameter: 6 mm

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick assembly.

Wide range of applications and versatility, from agricultural machinery to furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
