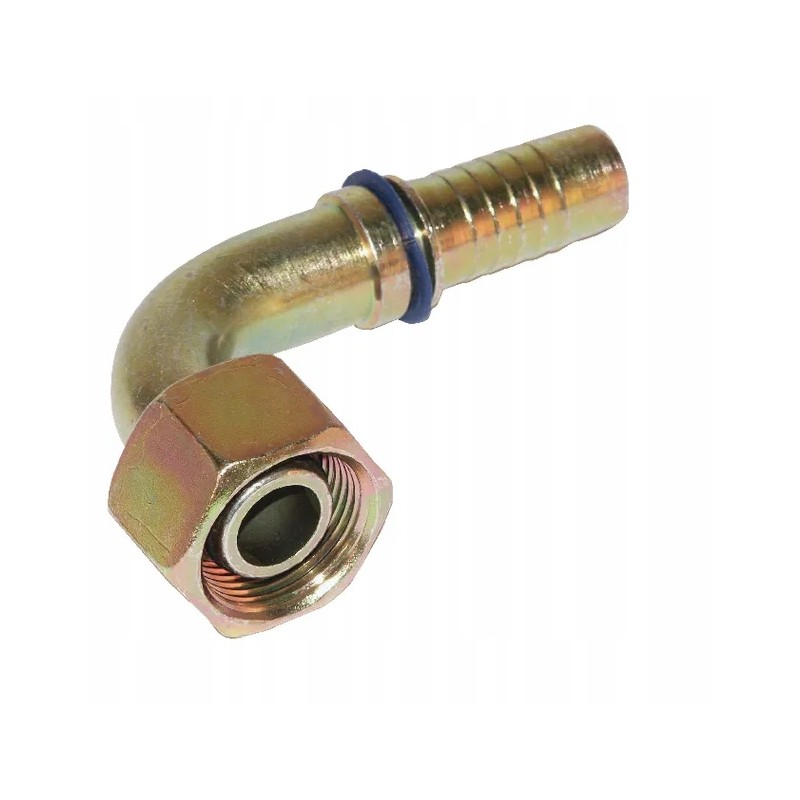

Pgso102090 tip dn10 m20x1 5 12s 90

PGSO102090 End cap DN10-M20x1.5-12S-90°EAN

8716106787074

Product details

Cone, conical seal with O-ring

S series cutting ring connection

Includes

Tips

O-ring

Cone angle

24 °

Shape

Elbow - 2 sides of connection

Connection type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOS

Length of connector no. 1< p>

34.3 mm

Thread diameter of connector no. 1

M20

Thread pitch of connector no. 1

1.50 mm

Wrench size for connector no. 1

24.0 mm

Type of connector no. 2

Hose connector

Connector No. 2 Type - Male/Female

Male

Connection No. 2 Diameter

3/8 inch

Connection No. 2 Diameter

10 mm

Length of connector no. 2

38.5 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

Series< p>

12S

OE reference number

H1221693-062000

Connection

xx

Type

DKOS
