Fuel filler cap case deutz ford new holland

FUEL FILLER CAP CASE FIAT FORD NEW HOLLAND 82009352 87547528 MIZAR number: 24128

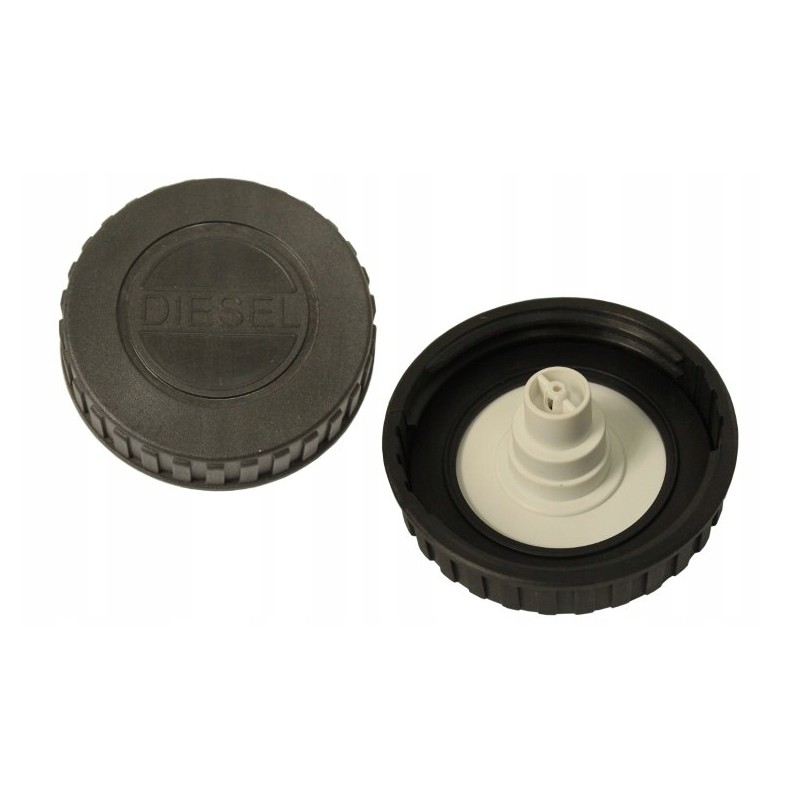

Fuel filler cap

Application:

Case IH JX 55, JX 60, JX 65, JX 70, JX 75, JX 80, JX 85, JX 90, JX 95, JX 100, JX 1060, JX 1070, JX 1075, JX 1080, JX 1085, JX 1090, JX 1095, JX 1100

Deutz Agrolux 60, Agrolux 70, Agrolux 80, Agrolux 90, Agroplus 75, Agroplus 85, Agroplus 95, Agroplus 100

Fiat L 60, L 65, L 75, L 85, L 95, M 100, M 115, M 135, M 160

Ford 4635, 4835, 5635, 6635, 7635, 8160, 8260, 8360, 8560

New Holland TN55, TN65, TN70, TN75, TN85, TN95, TL70, TL80, TL90, TS90, TS100, TS110, TS115, TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM16 5

Same Dorado 55, Dorado 56, Dorado 60, Dorado 65, Dorado 66, Dorado 70, Dorado 75, Dorado 76, Dorado 85, Dorado 86, Explorer 75, Explorer 85, Explorer 95, Row Crop 100.6, Silver 80, Silver 85, Silver 90, Silver 95, Silver 100.4, Silver 100.6, Silver 105, Silver 110, Titan 145, Titan 160, Titan 190

Reference number:

82009352, 87547528

Dimensions:

Outer diameter: 91.2mm

Inner diameter: 82.6mm

Inner diameter measured on the outside of the thread: 77.3mm Total height: 38mm

Height of the nut itself: 22mm

MIZAR number: 24128
