Skpm12l14 quick connector iso 12 5 m14x1 5 8l

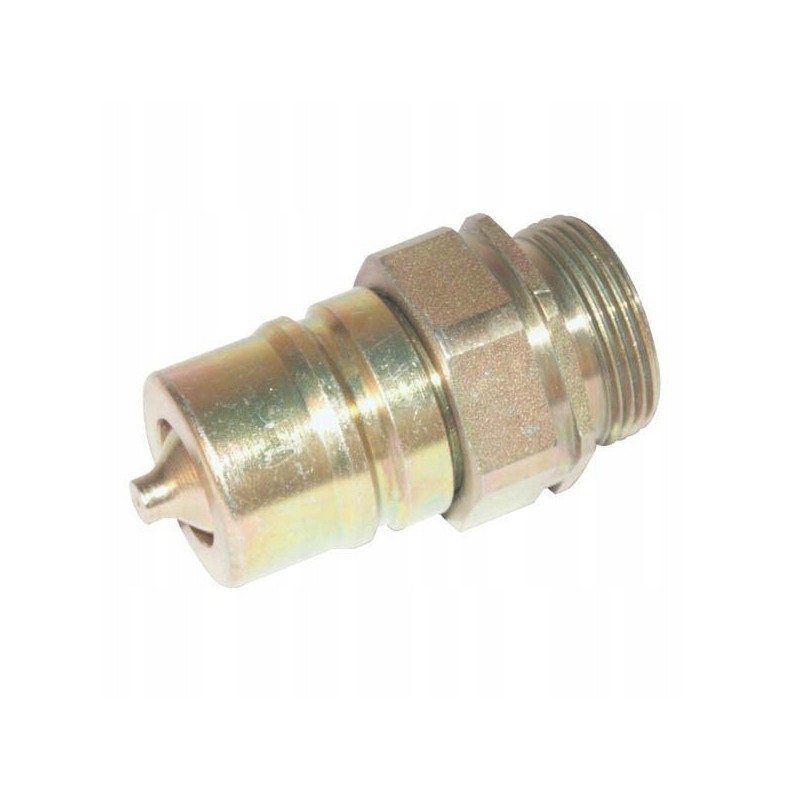

Quick connector ISO 12.5 M14X1.5-8L - plug INDEX: SKPM12L14

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function

Shape: Straight - 2 sides of the connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil-based fluids

Outer diameter: 38 mm

ISO standard: 7241 -1-A

Series: 8L

Connection diameter: 20.6 mm

Surface treatment: White passivated

Total length: 57 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Male

Possibility of connecting under pressure: No

Max operating temperature: 100°C

Min operating temperature: -30°C

Connection type: plug

Connection diameter no. 2: 8mm

Connection no. 2 thread pitch: 1.5mm

Connector type no. 2: Thread

Connection thread diameter no. 2: M14

Size (code): BG 3

Connection thread type no. 2: Metric

Connector type no. 1: Quick connector

Connector type no. 1 - male/female : Male
