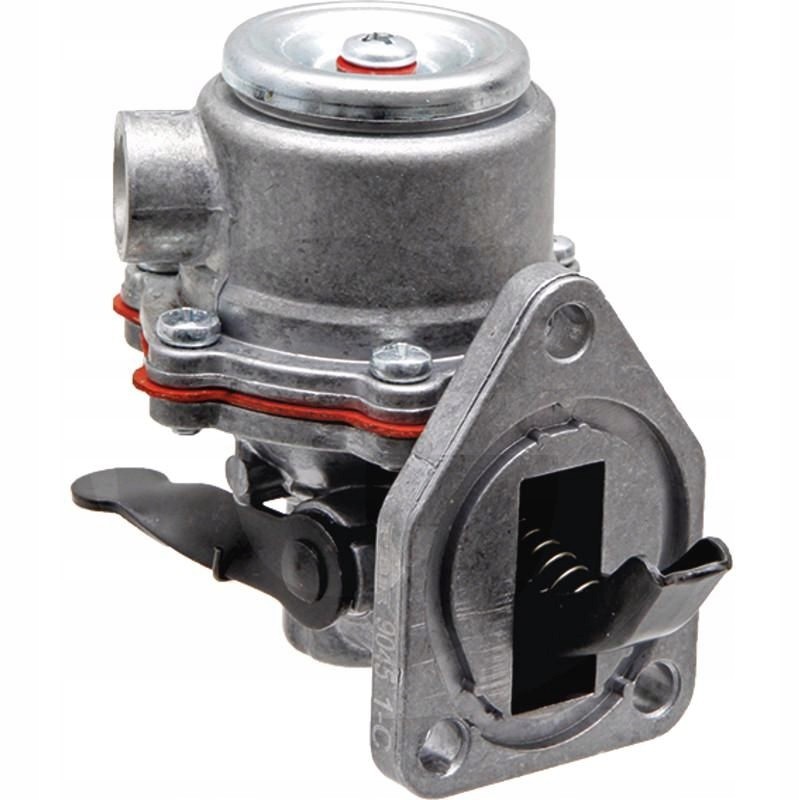

Diaphragm feed pump case 04238003 0423102

Diaphragm feed pump CASE 04238003, 04231021, 04230294, 04157603,F208200710040, F208200710030,140100080709, 130100080733, 605201900004, 14 0100080702

Diaphragm feed pump CASE 04238003, 04231021, 04230294, 04157603,F208200710040, F208200710030,140100080709, 130100080733, 605201900004, 14 0100080702

It occurs, among others:

Case IH, Deutz, Fendt, Renault, Deutz engines of industrial and agricultural machinery engine type: F3, 4, 5, 6L 912, 913W/T, F2L912 Bj. 3/84, F3L812D, F3L913, F4L812D, F4L912W, F5L912, F5L912W, F5L912D, F6L812D, F6L912, F6L912W, Steyr

D 4006, 4506, 5206, 6806, 7206, 8006, 10006, 4007, 4507, 4807, 5207, 6207, 6507, 6807, 6907, 7007, 7207, 7807, DX 85, 90, 9 2, 110, 120, 4.10, 4.30, 4.50, 4.70, 3.10, 3.30, 3.50, 3.60, 3.70, 3.80, 3.90, Hopfen DX 4.57, AgroPrima 4.31, 4.51, 4

Technical data:

Version: 3 holes

vertical hole spacing = 52 mm

horizontal hole spacing = 34 mm

collar to the end of the lever = 26 mm, Weight: 328 g, EAN code: 4059139117475

Comparison numbers: 04238003, 04231021, 04230294, 04157603,F208200710040, F208200710030,140100080709, 130100080733, 605201900004, 14010008 0702

Producer: GRANIT
