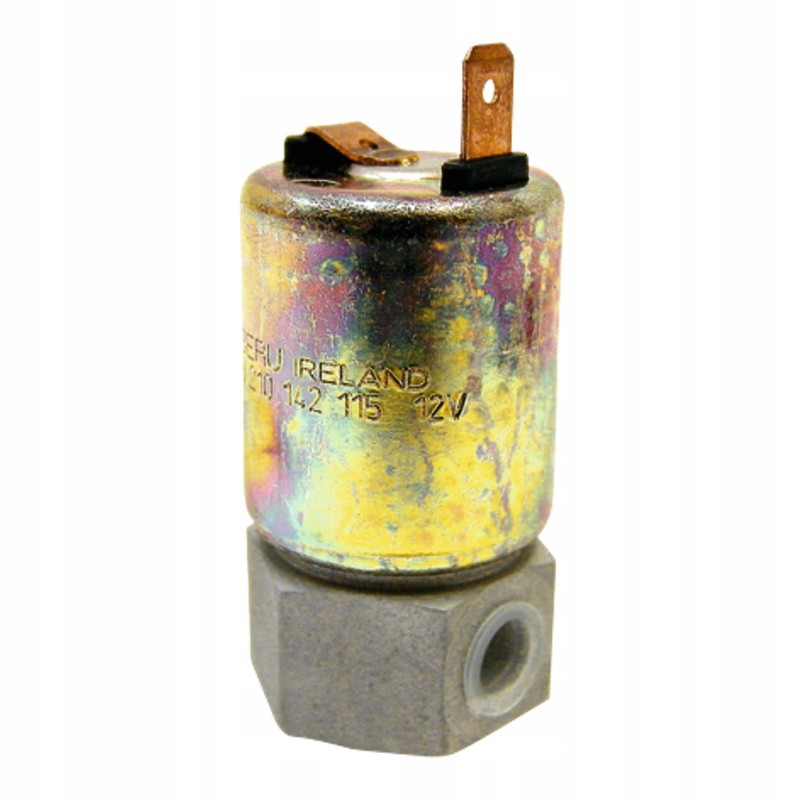

Solenoid valve 100ed granite

Solenoid valve 100ED GRANITE QUALITY PROVIDED BY GRANITE PARTS GERMANY

Brand: GRANIT PARTS GERMANY

Article number: 507MV115

Reference number: 0210142115

Technical parameters:

Valve only for system Heating system! Not for permanent opening 12V, 20W,

spool resistance: 8 ± 0.5 Ohm at 20° C,

on time (ED): 100%,

valve function: currentless closing,

single-pin electrical connection,

mounting position:any,

medium: otto or diesel,

flow quantity at 20°C and 500 mm drop: approx. 4l/h,

inlet pressure: max. 10 bar,

dynamic pressure boost: max. 45 bar,

pressure increase: max. 60 bar/ms,

temperature range: from - 55°C to + 140°C,

perm. vibration acceleration: 400 m/s²,

degrees of protection according to DIN 40 050: IP 60,

bandwidth: Ø 1.5 mm,

starting voltage: <, 7.5 V,

sustained voltage: <, 3V
