Panther 56 diesel pump with K33 meter F00385P0A MIZAR number: 74249

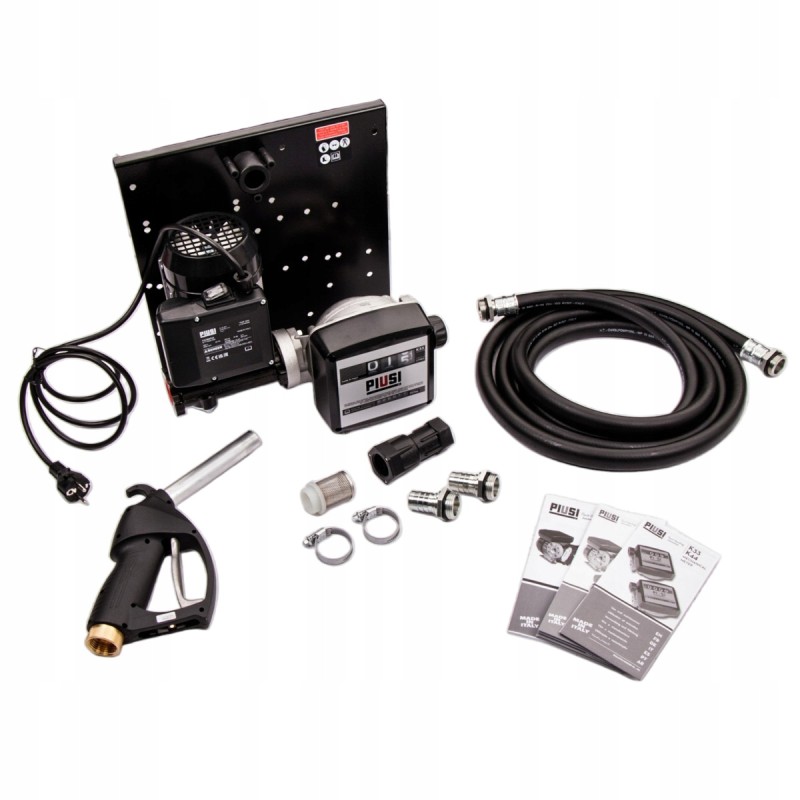

Panther 56 diesel pump with K33 meter F00385P0A* The special feature of the Panther 56 diesel dispenser is its simple installation.* Its versatility makes it a product that can be adapted to any all conditions.* It is used wherever it is necessary to supplement mobile or buried tanks with a dosing unit. The set includes: Panther 56 pump
K33 analog counter
Check valve
4-meter delivery hose
Gun without function automatic shutdown
Technical information: Nominal flow: 56 l/min
Maximum continuous working pressure: 1.5BAR
Maximum lifting height: 4m
Rated voltage: 0-230V
Power consumption: 0.6kW
Speed rotational speed: 2900 rpm
Construction type: Vane
Medium: Diesel oil
Hose length - discharge side: 4m
Gun type: SELF 3000
Suction connection thread diameter: 3/4'
Application: Oil pump The Panther 56 diesel engine is suitable for various sectors, including agriculture and automotive, for refueling agricultural machinery, tractors, construction vehicles and other diesel-powered machines.
Reference number: F00385P0A
MIZAR number: 74249
