LED panel atv utv osram 45 1 in ece approval

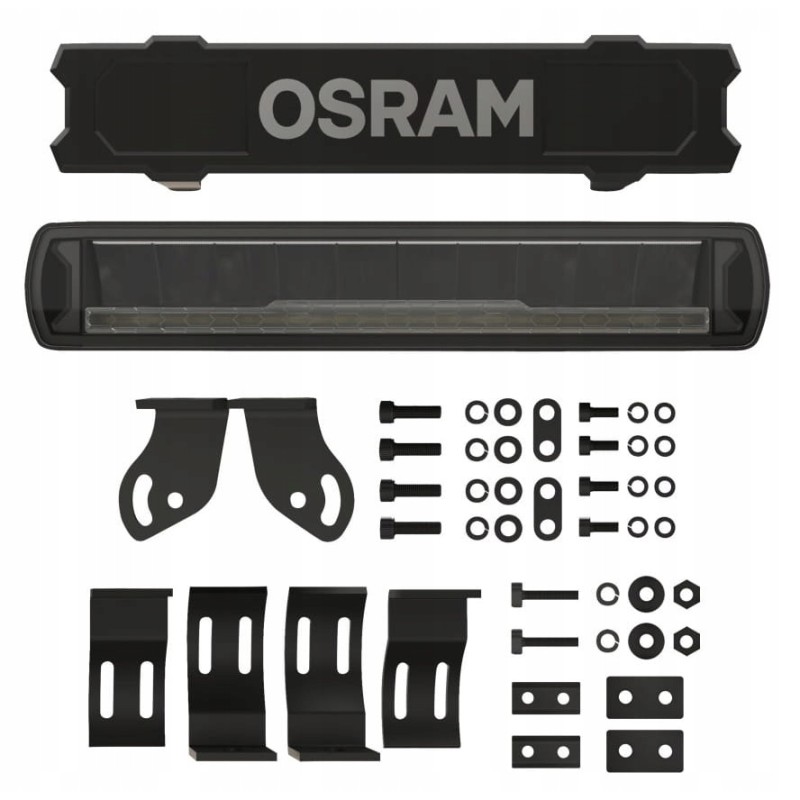

OSRAM LED PANEL 45/1 W ECE APPROVAL

LEDriving Lightbar MX250-CB is a homologated additional driving light,

which provides far area illumination on dark roads.

Even in conditions of poor visibility or dusk, 26 strong LEDs illuminate up to 320 meters of the road and provide light with a color temperature of up to 6,000K.

The lamps comply with homologation requirements and can be used on public roads.

The LED panel can cope with even the most extreme weather conditions.

OSRAM LEDriving Lightbar MX250-CB have been tested in a DIN-certified environmental simulation laboratory for resistance to extreme external factors (water, dust, high and low temperatures and vibrations) and achieved a protection class of IP69K

The integrated controller and temperature management system provides protection against overheating of 26 LEDs.

The panel has two lighting functions:

- parking light (the strip at the bottom is lit)

- high beam (all LEDs are on)

Full polarity protection both protects against voltage spikes and ensures longer durability.

Nominal voltage:

12/24 May

Rated power:

45/1 W

Luminous flux:

2700 lm

Color temperature:

6000 K

Dimensions and weight:

Length: 35.6 cm

Width: 8.6 cm

Height: 5.2 cm

Product weight:

2 kg

Durability:

5000 h

Warranty:

5 years

ECE R10, R112, R7

E4 homologation

Protection type IP67

MX250-CB
