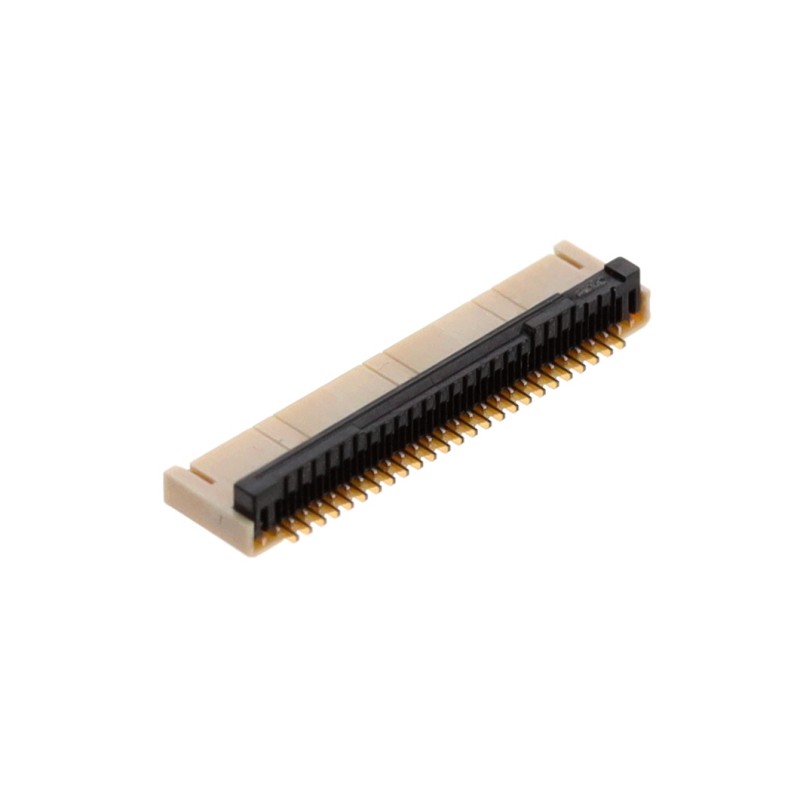

    10 pcs : FH58-51S-0.2SHW - CONN FFC FPC 0.2MM SMD
    • 10 pcs : FH58-51S-0.2SHW - CONN FFC FPC 0.2MM SMD

    10 pcs : FH58-51S-0.2SHW - CONN FFC FPC 0.2MM SMD

    10AllpartsUK26FH5851S02SHWTRND
    £66.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    51 Position FPC Connector Contacts, Top and Bottom 0.016' (0.40mm) Surface Mount
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUK26FH5851S02SHWTRND
    FH58-51S-0.2SHW
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -55°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    51
    Series
    FH58M
    Voltage Rating
    30V
    Mounting Type
    Surface Mount
    Housing Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Termination
    Solder
    Features
    Zero Insertion Force (ZIF)
    Pitch
    0.016' (0.40mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA), Nylon, Halogen Free
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.2A
    Contact Finish
    Gold
    Contact Finish Thickness
    1.25µin (0.03µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.88mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Black
    Mating Cycles
    10
