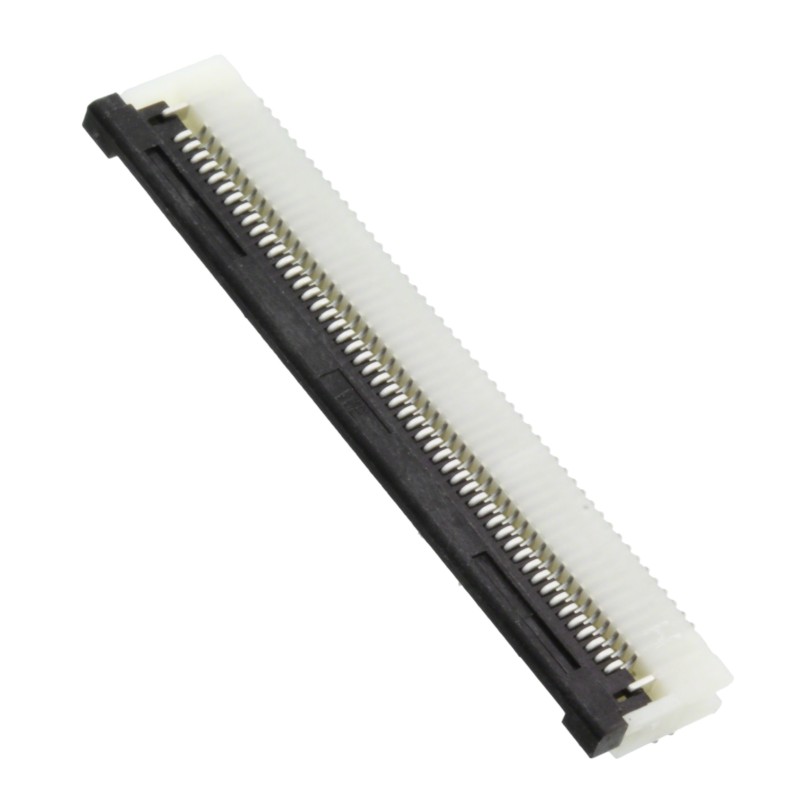

    10 pcs : 687150149022 - CONN FFC BOTTOM 50POS 0.5MM R/A
    • 10 pcs : 687150149022 - CONN FFC BOTTOM 50POS 0.5MM R/A

    10 pcs : 687150149022 - CONN FFC BOTTOM 50POS 0.5MM R/A

    10AllpartsUK73260152ND
    £66.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    50 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    Würth Elektronik
    10AllpartsUK73260152ND
    687150149022
    3 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    50
    Series
    WR-FPC
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Polyamide (PA6T), Nylon 6T
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA6T), Nylon 6T
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Tin
    Contact Finish Thickness
    120.0µin (3.05µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.087' (2.20mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Ivory
    Actuator Color
    Black
    Mating Cycles
    20
