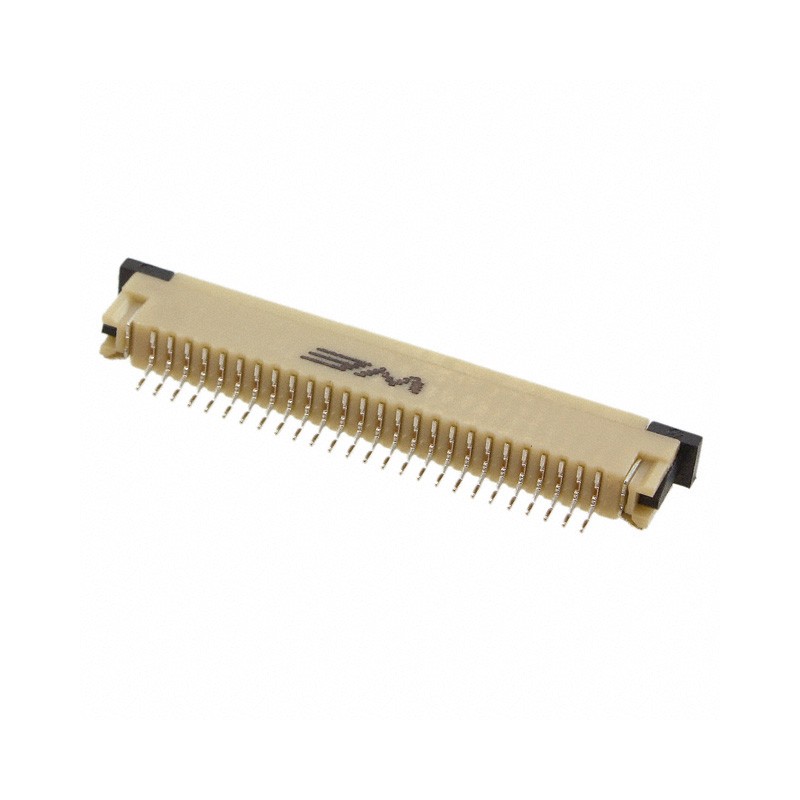

    10 pcs : 68612614122 - CONN FPC TOP 26POS 1MM R/A
    • 10 pcs : 68612614122 - CONN FPC TOP 26POS 1MM R/A

    10 pcs : 68612614122 - CONN FPC TOP 26POS 1MM R/A

    10AllpartsUK73235112ND
    £65.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    26 Position FPC Connector Contacts, Top 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    Würth Elektronik
    10AllpartsUK73235112ND
    68612614122
    3 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Operating temperature
    -25°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    26
    Series
    WR-FPC
    Voltage Rating
    125V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Polyphenylene Sulfide (PPS)
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    1A
    Contact Finish
    Tin
    Contact Finish Thickness
    100.0µin (2.54µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.29mm ~ 0.34mm
    Height Above Board
    0.116' (2.95mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Brown
    Mating Cycles
    25
