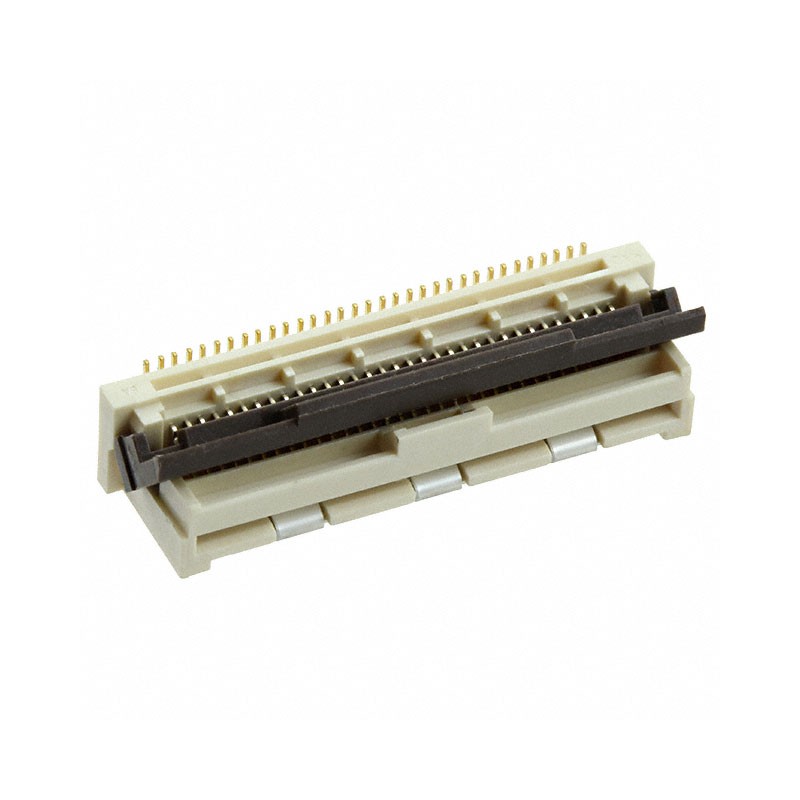

    10 pcs : 5022313300 - CONN FFC VERT 33POS 0.5MM SMD
    • 10 pcs : 5022313300 - CONN FFC VERT 33POS 0.5MM SMD

    10 pcs : 5022313300 - CONN FFC VERT 33POS 0.5MM SMD

    10AllpartsUKWM14448TRND
    MOLEX
    £64.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    33 Position FFC Connector Contacts, Vertical - 1 Sided 0.020' (0.50mm) Surface Mount
    Product Details
    MOLEX
    10AllpartsUKWM14448TRND
    5022313300
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -25°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    33
    Series
    Easy-On 502231
    Voltage Rating
    50V
    Mounting Type
    Surface Mount
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA9T), Nylon 9T, Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.4A
    Contact Finish
    Gold
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.238' (6.05mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Brown
    Mating Cycles
    20
