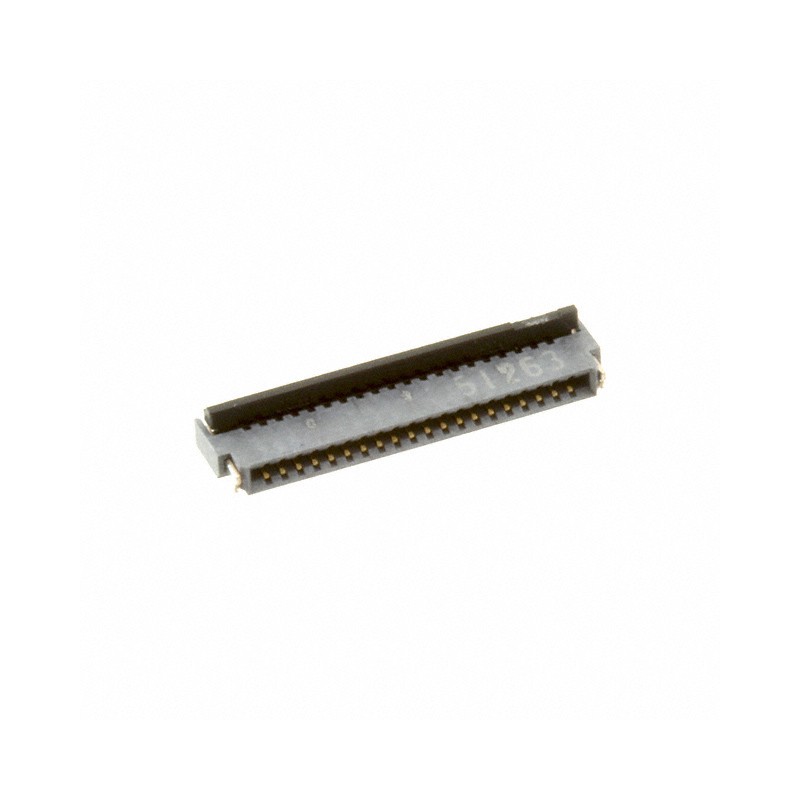

    10 pcs : FH34SRJ-20S-0.5SH(99) - CONN FFC FPC 20POS 0.5MM R/A
    • 10 pcs : FH34SRJ-20S-0.5SH(99) - CONN FFC FPC 20POS 0.5MM R/A

    10 pcs : FH34SRJ-20S-0.5SH(99) - CONN FFC FPC 20POS 0.5MM R/A

    10AllpartsUKH124723TRND
    £64.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    20 Position FFC, FPC Connector Contacts, Top and Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUKH124723TRND
    FH34SRJ-20S-0.5SH(99)
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -55°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    20
    Series
    FH34SRJ
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Termination
    Solder
    Features
    Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA), Nylon
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.039' (1.00mm)
    Locking Feature
    Rotary Lock, Backlock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Gray
    Actuator Color
    Black
    Mating Cycles
    20
