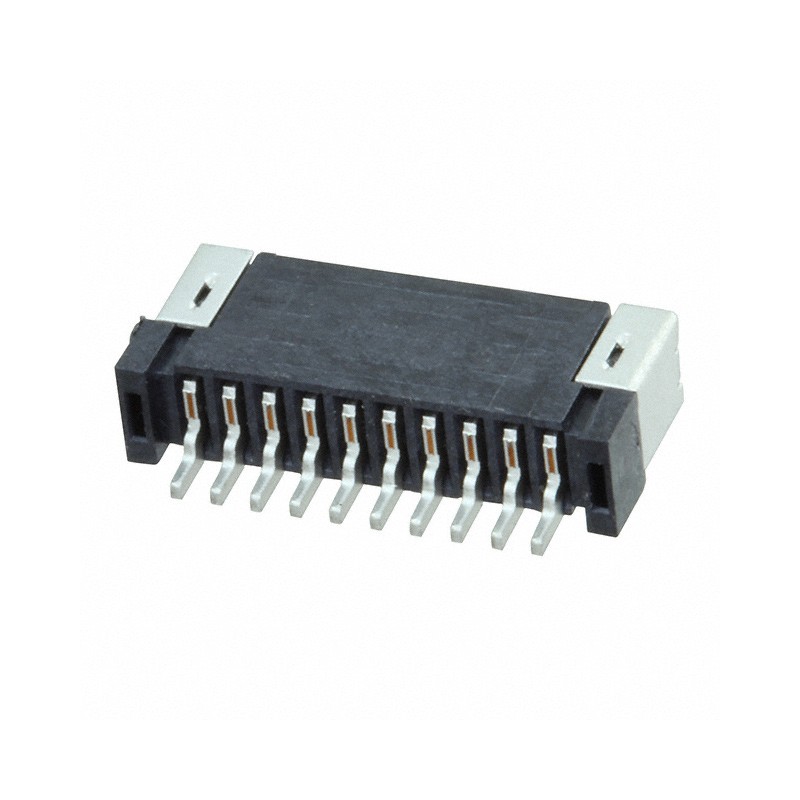

    10 pcs : FC1-10-02-T-WT - CONN FFC 10POS 1MM R/A
    • 10 pcs : FC1-10-02-T-WT - CONN FFC 10POS 1MM R/A

    10 pcs : FC1-10-02-T-WT - CONN FFC 10POS 1MM R/A

    10AllpartsUKSAM11142ND
    £64.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    10 Position FFC Connector Contacts, Top and Bottom 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    Samtec Inc.
    10AllpartsUKSAM11142ND
    FC1-10-02-T-WT
    3 Items

    Data sheet

    Manufacturer
    Samtec Inc.
    Operating temperature
    -55°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    10
    Series
    FC1
    Voltage Rating
    -
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    -
    Packaging
    Tube
    Current Rating (Amps)
    2A per Contact
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    -
    Locking Feature
    -
    Cable End Type
    Straight
    Material Flammability Rating
    -
    Housing Color
    Black
    Actuator Color
    -
    Mating Cycles
    25
