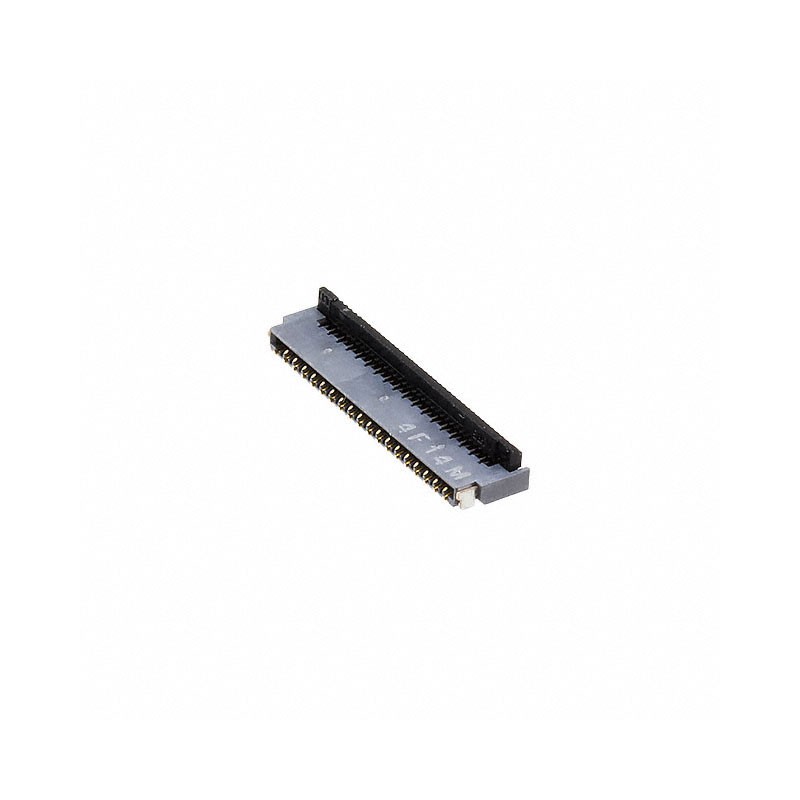

    10 pcs : FH35C-37S-0.3SHW(50) - CONN FPC 37POS 0.3MM R/A
    • 10 pcs : FH35C-37S-0.3SHW(50) - CONN FPC 37POS 0.3MM R/A

    10 pcs : FH35C-37S-0.3SHW(50) - CONN FPC 37POS 0.3MM R/A

    10AllpartsUK26FH35C37S03SHW50TRND
    £63.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    37 Position FPC Connector Contacts, Top and Bottom 0.012' (0.30mm) Surface Mount, Right Angle
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUK26FH35C37S03SHW50TRND
    FH35C-37S-0.3SHW(50)
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -55°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    37
    Series
    FH35C
    Voltage Rating
    30V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    -
    Pitch
    0.012' (0.30mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA), Nylon
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.2A
    Contact Finish
    Gold
    Contact Finish Thickness
    11.8µin (0.30µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.88mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Gray
    Actuator Color
    Black
    Mating Cycles
    10
