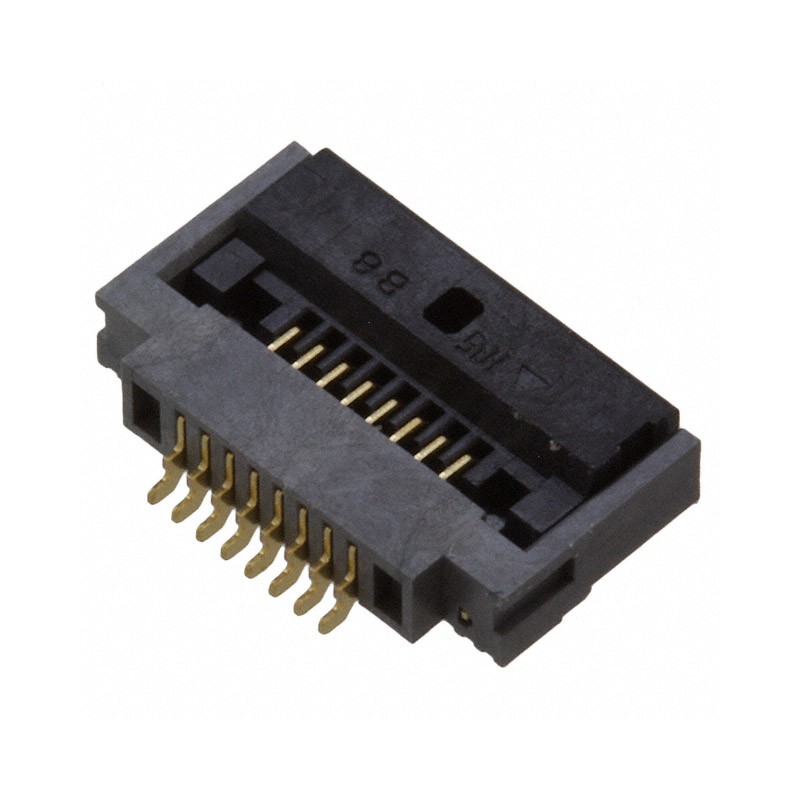

    10 pcs : FH52-8S-0.5SH(99) - CONN FFC BOTTOM 8POS 0.5MM R/A
    • 10 pcs : FH52-8S-0.5SH(99) - CONN FFC BOTTOM 8POS 0.5MM R/A

    10 pcs : FH52-8S-0.5SH(99) - CONN FFC BOTTOM 8POS 0.5MM R/A

    10AllpartsUKHFZ008TRND
    £63.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUKHFZ008TRND
    FH52-8S-0.5SH(99)
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    8
    Series
    FH52
    Voltage Rating
    -
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Termination
    Solder
    Features
    -
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    1.25µin (0.03µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.079' (2.00mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Gray
    Actuator Color
    Black
    Mating Cycles
    20
