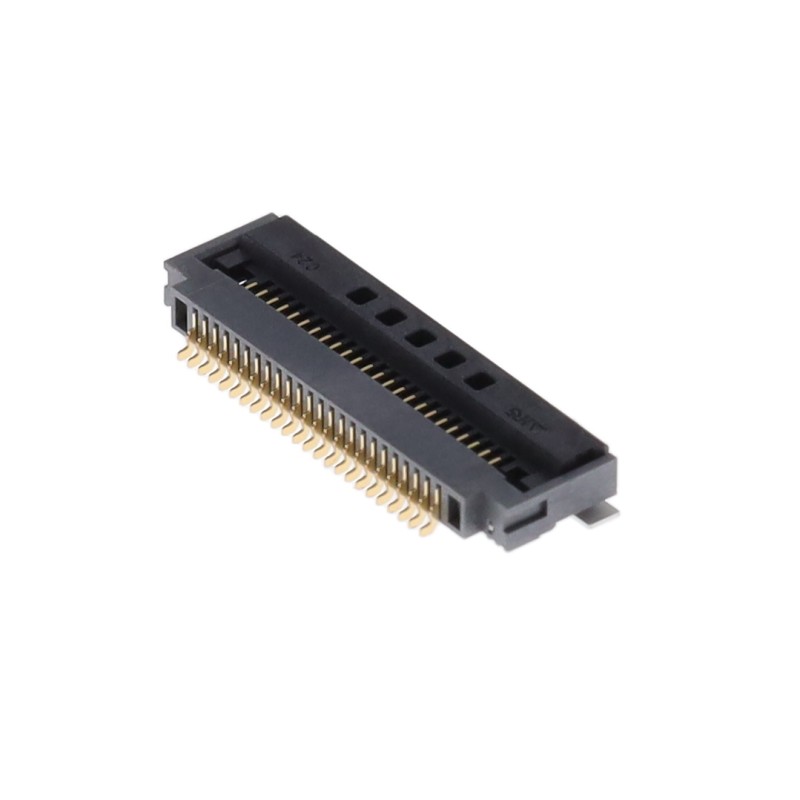

    10 pcs : FH52K-24S-0.5SH - CONN FFC BOTTOM 24POS 0.5MM R/A
    • 10 pcs : FH52K-24S-0.5SH - CONN FFC BOTTOM 24POS 0.5MM R/A

    10 pcs : FH52K-24S-0.5SH - CONN FFC BOTTOM 24POS 0.5MM R/A

    10AllpartsUK26FH52K24S05SHTRND
    £62.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    24 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUK26FH52K24S05SHTRND
    FH52K-24S-0.5SH
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -40°C ~ 125°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    24
    Series
    FH52
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP), Halogen Free
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    1.25µin (0.03µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.079' (2.00mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Gray
    Actuator Color
    Black
    Mating Cycles
    20
