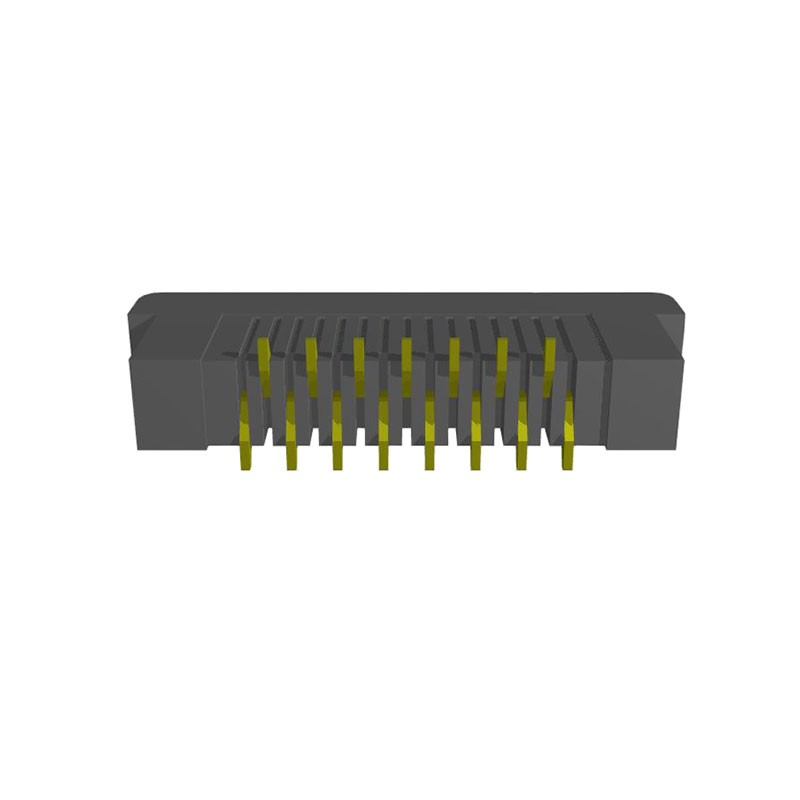

    10 pcs : ZF5S-15-03-T-WT-TR - CONN FFC VERT 15POS 0.5MM SMD
    • 10 pcs : ZF5S-15-03-T-WT-TR - CONN FFC VERT 15POS 0.5MM SMD

    10 pcs : ZF5S-15-03-T-WT-TR - CONN FFC VERT 15POS 0.5MM SMD

    10AllpartsUK612ZF5S1503TWTTRND
    £59.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    15 Position FFC Connector Contacts, Vertical - 1 Sided 0.020' (0.50mm) Surface Mount
    Product Details
    Samtec Inc.
    10AllpartsUK612ZF5S1503TWTTRND
    ZF5S-15-03-T-WT-TR
    3 Items

    Data sheet

    Manufacturer
    Samtec Inc.
    Operating temperature
    -55°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    15
    Series
    ZF5S
    Voltage Rating
    -
    Mounting Type
    Surface Mount
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)
    Current Rating (Amps)
    1.8A per Contact
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.192' (4.87mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Straight
    Material Flammability Rating
    -
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    -
