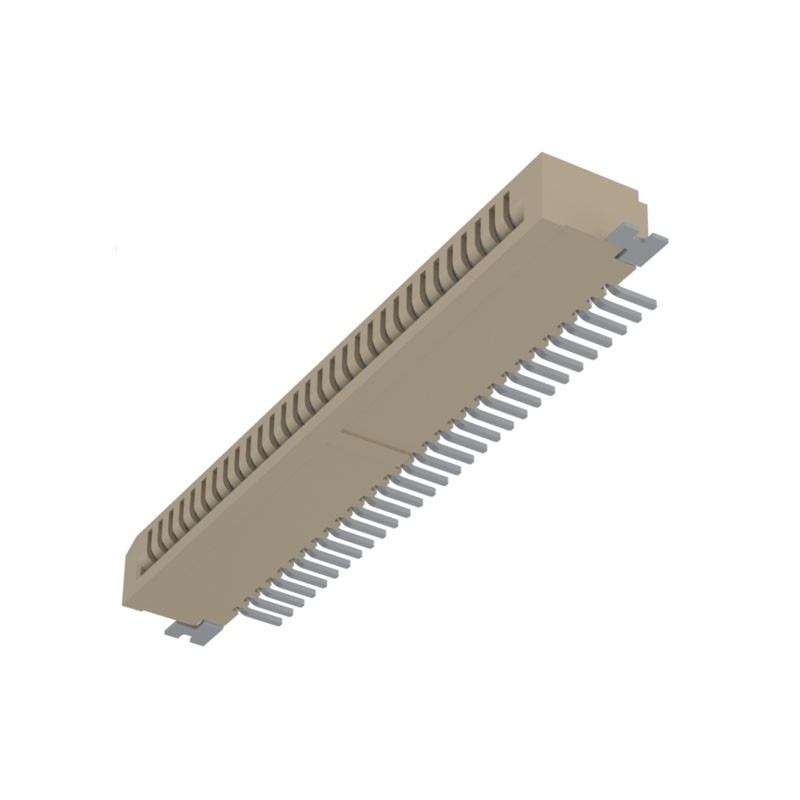

    10 pcs : 686130188622 - CONN FPC TOP 30POS 1MM R/A
    • 10 pcs : 686130188622 - CONN FPC TOP 30POS 1MM R/A

    10 pcs : 686130188622 - CONN FPC TOP 30POS 1MM R/A

    10AllpartsUK732686130188622TRND
    £59.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    30 Position FPC Connector Contacts, Top 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    Würth Elektronik
    10AllpartsUK732686130188622TRND
    686130188622
    3 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Operating temperature
    -25°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    30
    Series
    WR-FPC
    Voltage Rating
    125V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Low Insertion Force (LIF), Solder Retention
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    1A
    Contact Finish
    Tin
    Contact Finish Thickness
    80.0µin (2.03µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.29mm ~ 0.34mm
    Height Above Board
    0.122' (3.10mm)
    Locking Feature
    -
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Ivory
    Actuator Color
    -
    Mating Cycles
    20
