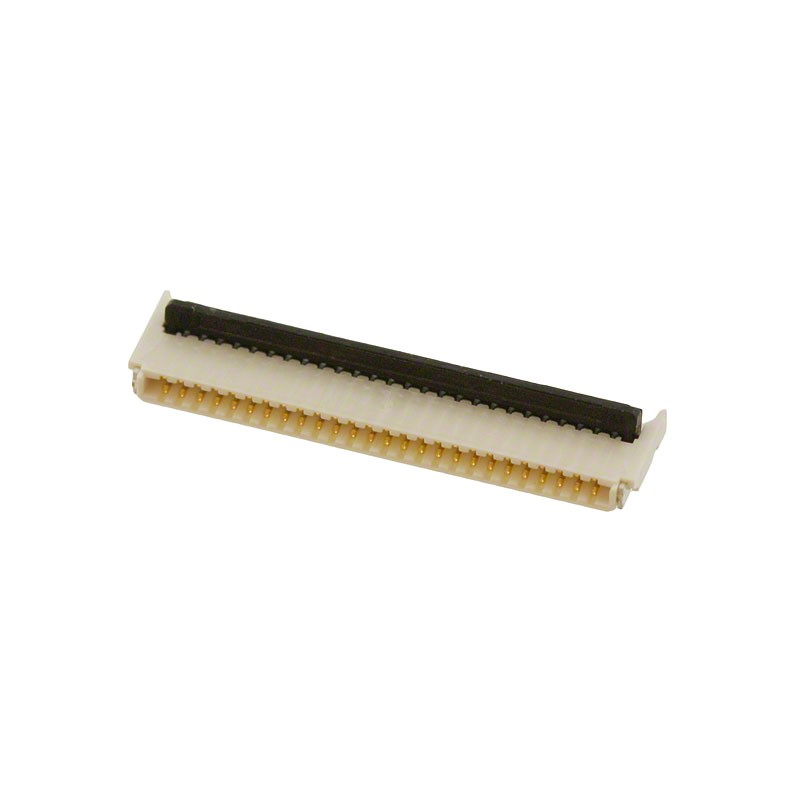

    10 pcs : 5034802600 - CONN FFC FPC 26POS 0.5MM R/A
    • 10 pcs : 5034802600 - CONN FFC FPC 26POS 0.5MM R/A

    10 pcs : 5034802600 - CONN FFC FPC 26POS 0.5MM R/A

    10AllpartsUK235034802600TRND
    MOLEX
    £56.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    26 Position FFC, FPC Connector Contacts, Top and Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    10AllpartsUK235034802600TRND
    5034802600
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    26
    Series
    BackFlip, Easy-On 503480 FHB1
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA), Nylon, Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.039' (1.00mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Straight, Tapered
    Material Flammability Rating
    UL94 V-0, UL94 HB
    Housing Color
    White
    Actuator Color
    Black
    Mating Cycles
    10
