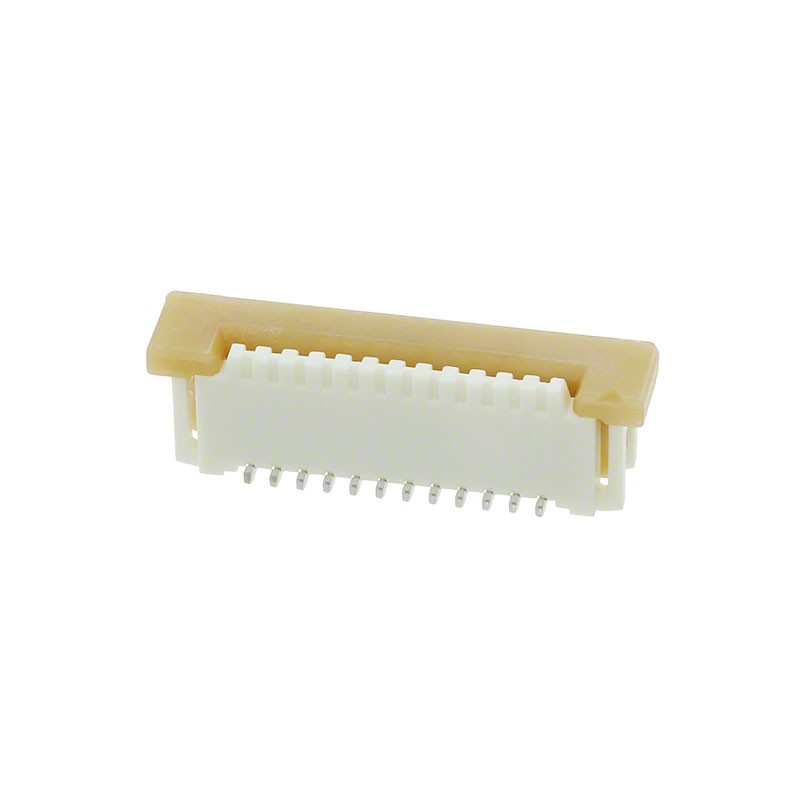

    10 pcs : 0526101271 - CONN VERT 12POS 1MM SMD
    • 10 pcs : 0526101271 - CONN VERT 12POS 1MM SMD

    10 pcs : 0526101271 - CONN VERT 12POS 1MM SMD

    10AllpartsUK9000526101271TRND
    MOLEX
    £54.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    12 Position Connector Contacts, Vertical - 1 Sided 0.039' (1.00mm) Surface Mount
    Product Details
    MOLEX
    10AllpartsUK9000526101271TRND
    0526101271
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    12
    Series
    Easy-On 52610
    Voltage Rating
    125V
    Mounting Type
    Surface Mount
    Housing Material
    Polyamide (PA46), Nylon 4/6
    Termination
    Solder
    Features
    Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    1A
    Contact Finish
    Tin Bismuth
    Contact Finish Thickness
    39.4µin (1.00µm)
    Flat Flex Type
    -
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.226' (5.74mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    30
