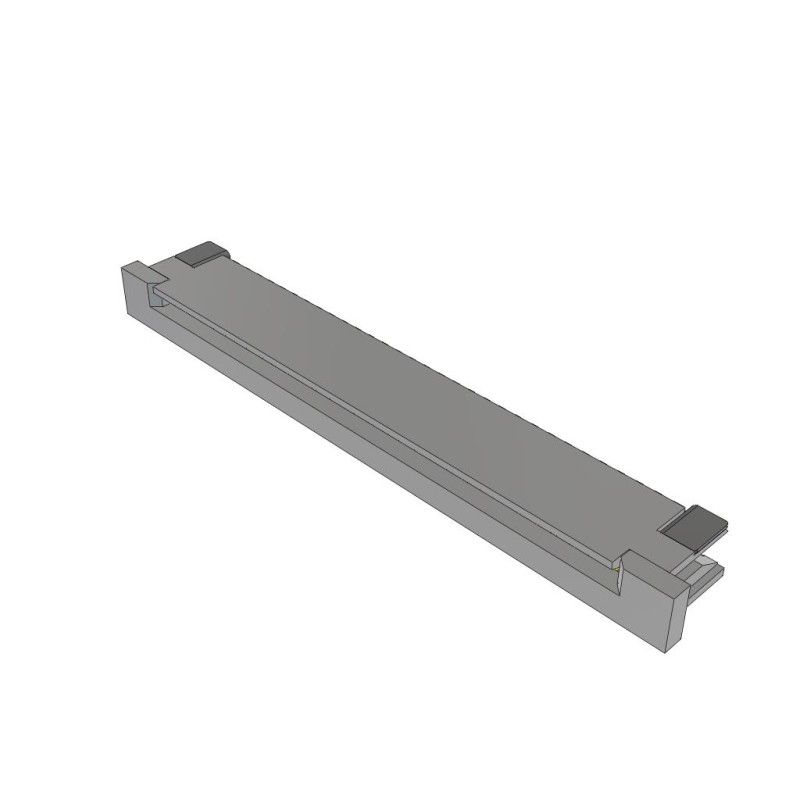

    10 pcs : ZF1-30-02-T-WT - 1.00 MM ZERO INSERTION FORCE FLA
    • 10 pcs : ZF1-30-02-T-WT - 1.00 MM ZERO INSERTION FORCE FLA

    10 pcs : ZF1-30-02-T-WT - 1.00 MM ZERO INSERTION FORCE FLA

    10AllpartsUK612ZF13002TWTND
    £54.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    30 Position FFC Connector Contacts, Top 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    Samtec Inc.
    10AllpartsUK612ZF13002TWTND
    ZF1-30-02-T-WT
    3 Items

    Data sheet

    Manufacturer
    Samtec Inc.
    Operating temperature
    -55°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    30
    Series
    ZF1
    Voltage Rating
    -
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tube
    Current Rating (Amps)
    -
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.118' (3.00mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-2
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    -
