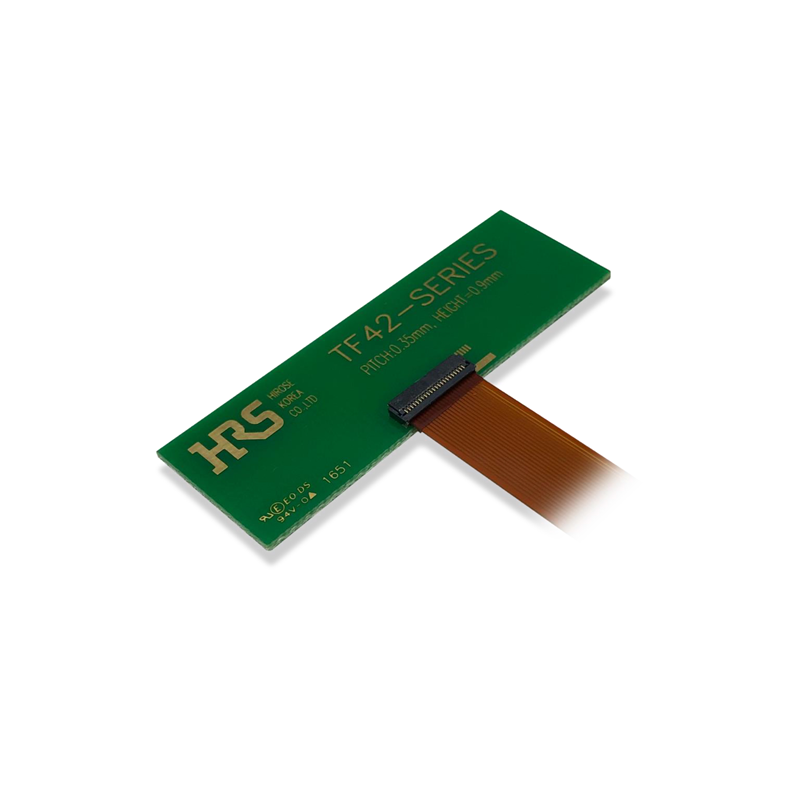

    10 pcs : TF42-24S-0.35SH(895) - CONN FPC BOTTOM 24POS 0.35MM R/A
    • 10 pcs : TF42-24S-0.35SH(895) - CONN FPC BOTTOM 24POS 0.35MM R/A

    10 pcs : TF42-24S-0.35SH(895) - CONN FPC BOTTOM 24POS 0.35MM R/A

    10AllpartsUK26TF4224S035SH895TRND
    £53.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    24 Position FPC Connector Contacts, Bottom 0.014' (0.35mm) Surface Mount, Right Angle
    Product Details
    Hirose Electric Co Ltd
    10AllpartsUK26TF4224S035SH895TRND
    TF42-24S-0.35SH(895)
    3 Items

    Data sheet

    Manufacturer
    Hirose Electric Co Ltd
    Operating temperature
    -55°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    24
    Series
    TF42
    Voltage Rating
    30V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.014' (0.35mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.4A
    Contact Finish
    Gold
    Contact Finish Thickness
    2.00µin (0.051µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.88mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Black
    Actuator Color
    Black
    Mating Cycles
    20
