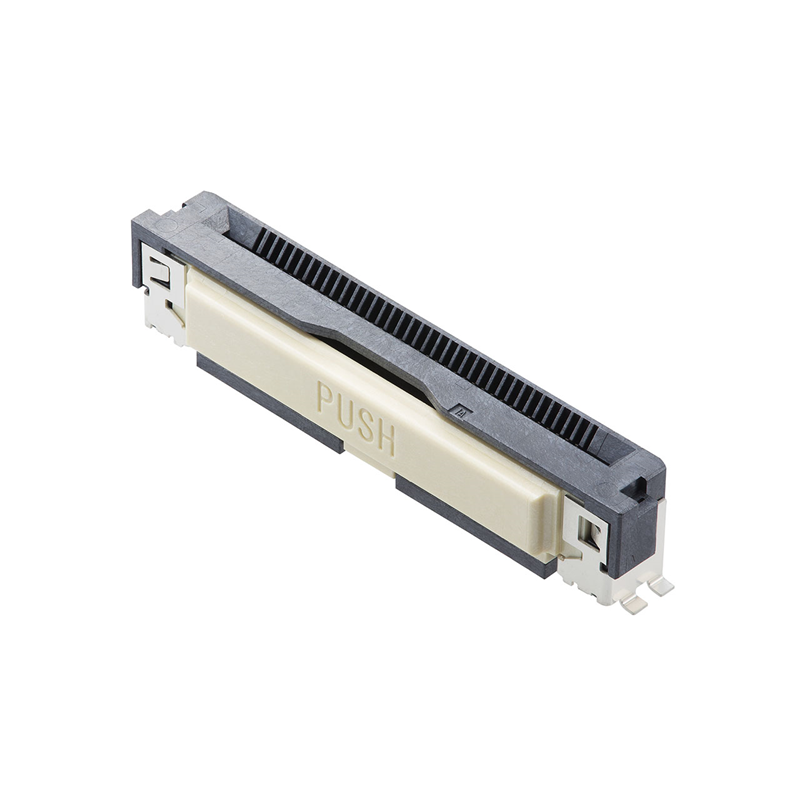

    10 pcs : 2004850540 - CONN FFC BOTTOM 40POS 0.5MM SMD
    • 10 pcs : 2004850540 - CONN FFC BOTTOM 40POS 0.5MM SMD

    10 pcs : 2004850540 - CONN FFC BOTTOM 40POS 0.5MM SMD

    10AllpartsUK9002004850540TRND
    MOLEX
    £52.75
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    40 Position FFC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount
    Product Details
    MOLEX
    10AllpartsUK9002004850540TRND
    2004850540
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    40
    Series
    Easy-On 200485
    Voltage Rating
    50V
    Mounting Type
    Surface Mount
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.220' (5.59mm)
    Locking Feature
    Auto Lock, Push Button Release
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Black
    Actuator Color
    Natural
    Mating Cycles
    20
