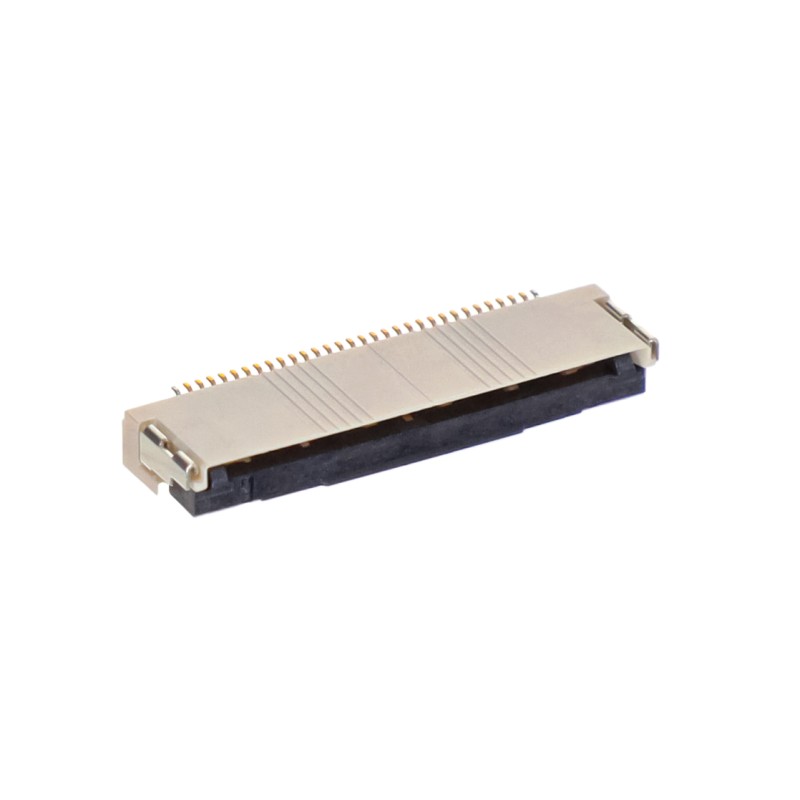

    10 pcs : 046817630001846+ - CONN FFC BOTTOM 30POS 0.5MM R/A
    • 10 pcs : 046817630001846+ - CONN FFC BOTTOM 30POS 0.5MM R/A

    10 pcs : 046817630001846+ - CONN FFC BOTTOM 30POS 0.5MM R/A

    10AllpartsUK478046817630001846+TRND
    £52.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    30 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    KYOCERA AVX
    10AllpartsUK478046817630001846+TRND
    046817630001846+
    3 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    30
    Series
    6817, Kyocera
    Voltage Rating
    -
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Plastic
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    -
    Contact Finish
    Gold
    Contact Finish Thickness
    2.00µin (0.051µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.102' (2.60mm)
    Locking Feature
    -
    Cable End Type
    Notched, Tapered
    Material Flammability Rating
    -
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    -
