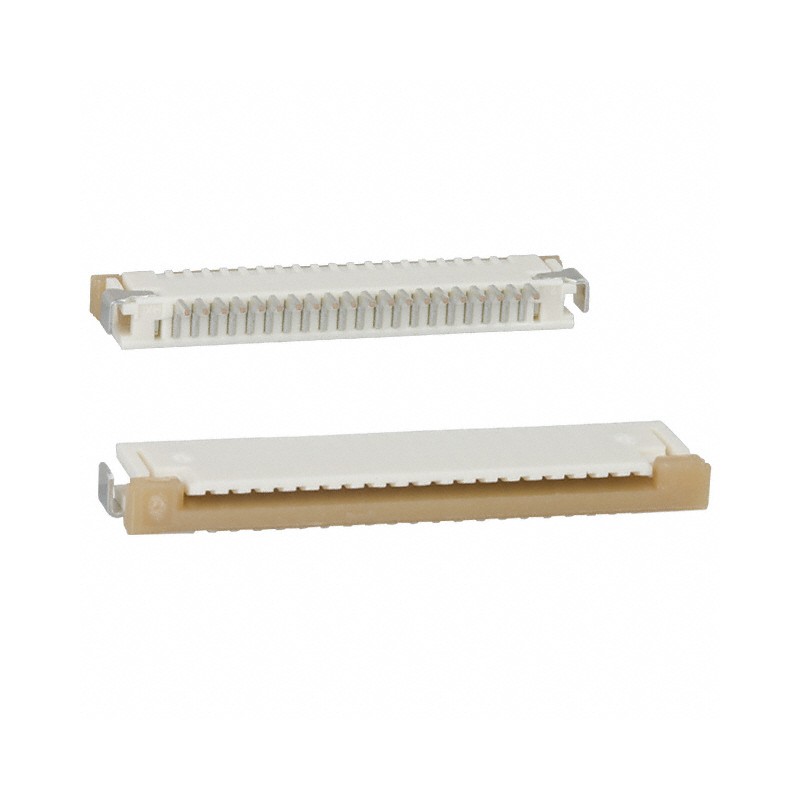

    10 pcs : 0522072085 - CONN FFC FPC TOP 20POS 1MM R/A
    • 10 pcs : 0522072085 - CONN FFC FPC TOP 20POS 1MM R/A

    10 pcs : 0522072085 - CONN FFC FPC TOP 20POS 1MM R/A

    10AllpartsUK9000522072085TRND
    MOLEX
    £50.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    20 Position FFC, FPC Connector Contacts, Top 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    10AllpartsUK9000522072085TRND
    0522072085
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    20
    Series
    Easy-On 52207
    Voltage Rating
    125V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Polyamide (PA46), Nylon 4/6
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    1A
    Contact Finish
    Tin Bismuth
    Contact Finish Thickness
    39.4µin (1.00µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.106' (2.70mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    -
    Mating Cycles
    30
