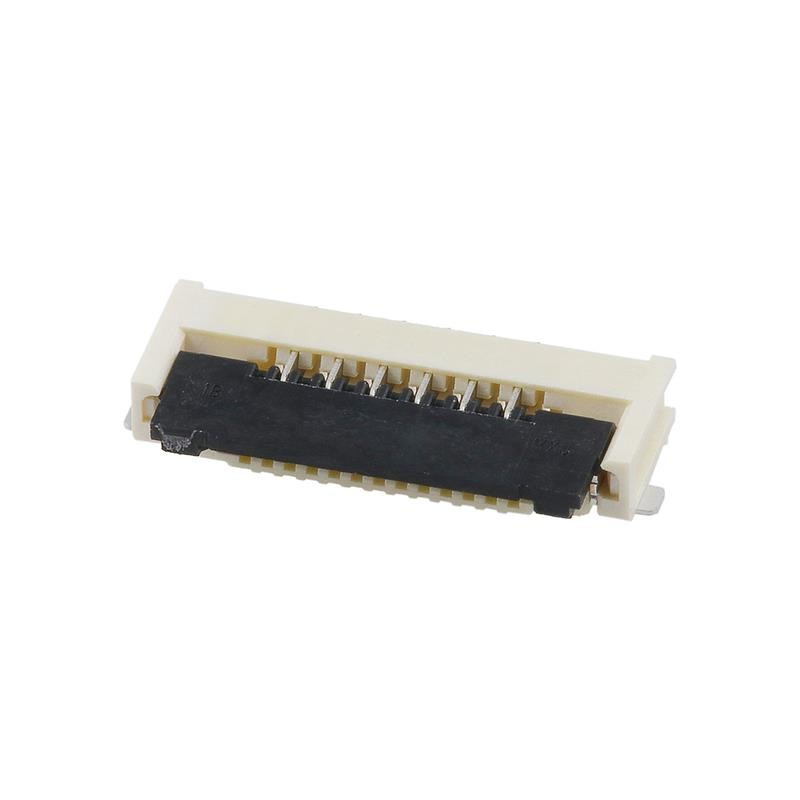

    10 pcs : 2005280061 - CONN FFC FPC BOTTOM 6POS 1MM R/A
    • 10 pcs : 2005280061 - CONN FFC FPC BOTTOM 6POS 1MM R/A

    10 pcs : 2005280061 - CONN FFC FPC BOTTOM 6POS 1MM R/A

    10electronicpartsUK9002005280061ND
    MOLEX
    £55.49
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    6 Position FFC, FPC Connector Contacts, Bottom 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    10electronicpartsUK9002005280061ND
    2005280061
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 150°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    6
    Series
    Easy-On FD19 200528
    Voltage Rating
    125V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA), Nylon, Glass Filled
    Packaging
    Bulk
    Current Rating (Amps)
    1A
    Contact Finish
    Gold
    Contact Finish Thickness
    1.97µin (0.050µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.075' (1.90mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Straight, Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Black
    Mating Cycles
    20
