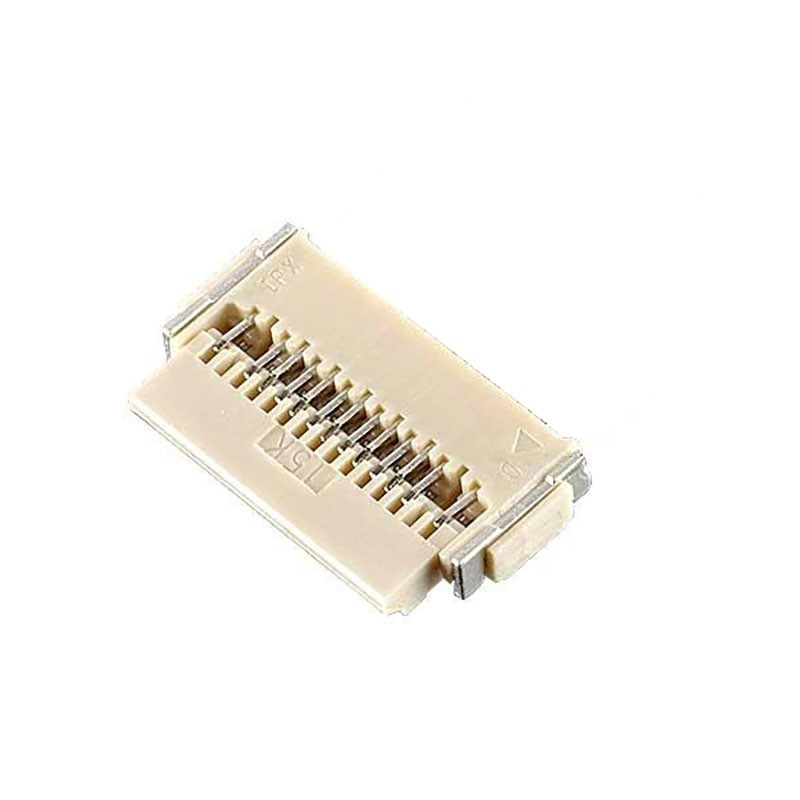

    10 pcs : 20655-045E-01 - MINILFEX 3-BFN L-LK-HD 45P
    • 10 pcs : 20655-045E-01 - MINILFEX 3-BFN L-LK-HD 45P

    10 pcs : 20655-045E-01 - MINILFEX 3-BFN L-LK-HD 45P

    10AllpartsUK537820655045E01TRND
    I-PEX
    £51.46
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    45 Position FFC, FPC Connector Contacts, Top and Bottom 0.012' (0.30mm) Surface Mount, Right Angle
    Product Details
    I-PEX
    10AllpartsUK537820655045E01TRND
    20655-045E-01
    3 Items

    Data sheet

    Manufacturer
    I-PEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    45
    Series
    MINIFLEX® 3-BFN L-LK-HD
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.012' (0.30mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    300mA per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    4.00µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.90mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Notched or Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Beige
    Mating Cycles
    20
