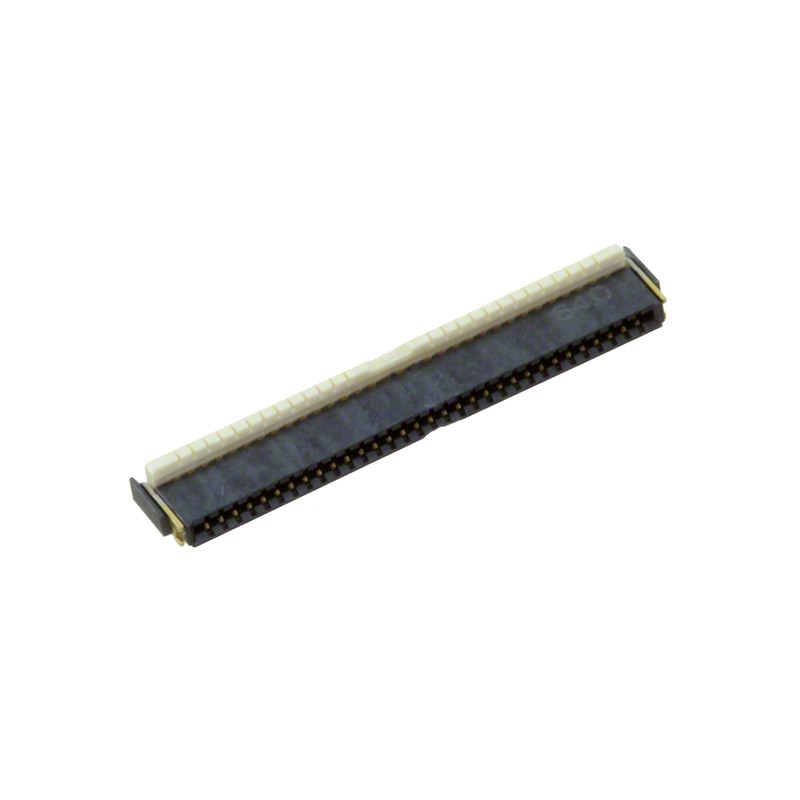

    10 pcs : AYF533235 - CONN FFC FPC 32POS 0.5MM R/A
    • 10 pcs : AYF533235 - CONN FFC FPC 32POS 0.5MM R/A

    10 pcs : AYF533235 - CONN FFC FPC 32POS 0.5MM R/A

    10AllpartsUK25564402ND
    £49.29
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    32 Position FFC, FPC Connector Contacts, Top and Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    Panasonic Electric Works
    10AllpartsUK25564402ND
    AYF533235
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -55°C ~ 85°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    32
    Series
    Y5B
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    -
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    Flash
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.039' (1.00mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    20
