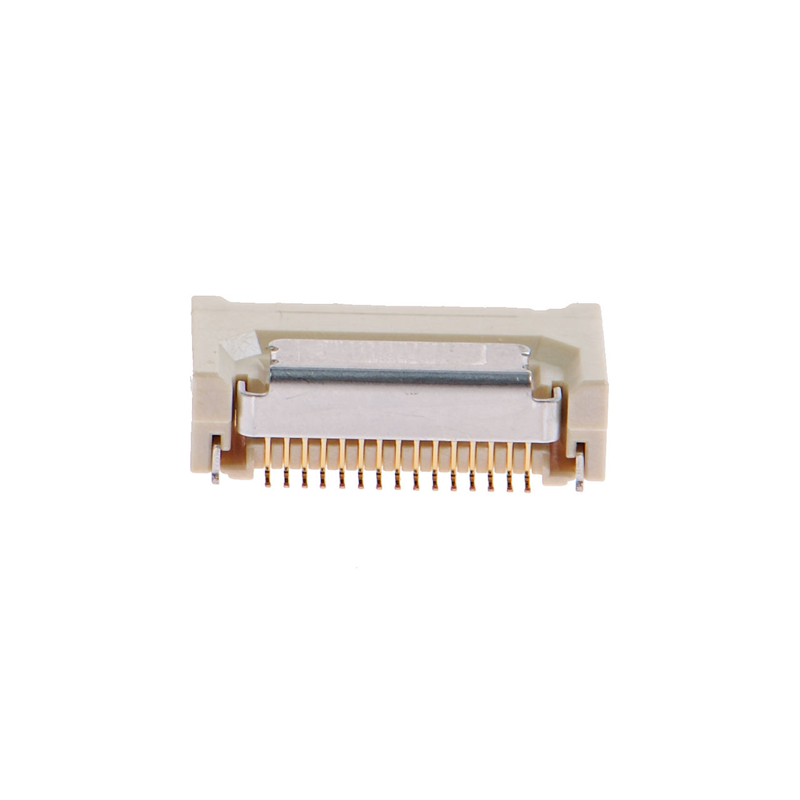

    10 pcs : IMSA-11501S-15C-GFN1 - CONN FFC BOTTOM 15POS 0.5MM R/A
    • 10 pcs : IMSA-11501S-15C-GFN1 - CONN FFC BOTTOM 15POS 0.5MM R/A

    10 pcs : IMSA-11501S-15C-GFN1 - CONN FFC BOTTOM 15POS 0.5MM R/A

    10AllpartsUK2248IMSA11501S15CGFN1TRND
    £42.16
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    15 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    IRISO USA Inc.
    10AllpartsUK2248IMSA11501S15CGFN1TRND
    IMSA-11501S-15C-GFN1
    3 Items

    Data sheet

    Manufacturer
    IRISO USA Inc.
    Operating temperature
    -
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    15
    Series
    11501
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.134' (3.40mm)
    Locking Feature
    -
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    -
