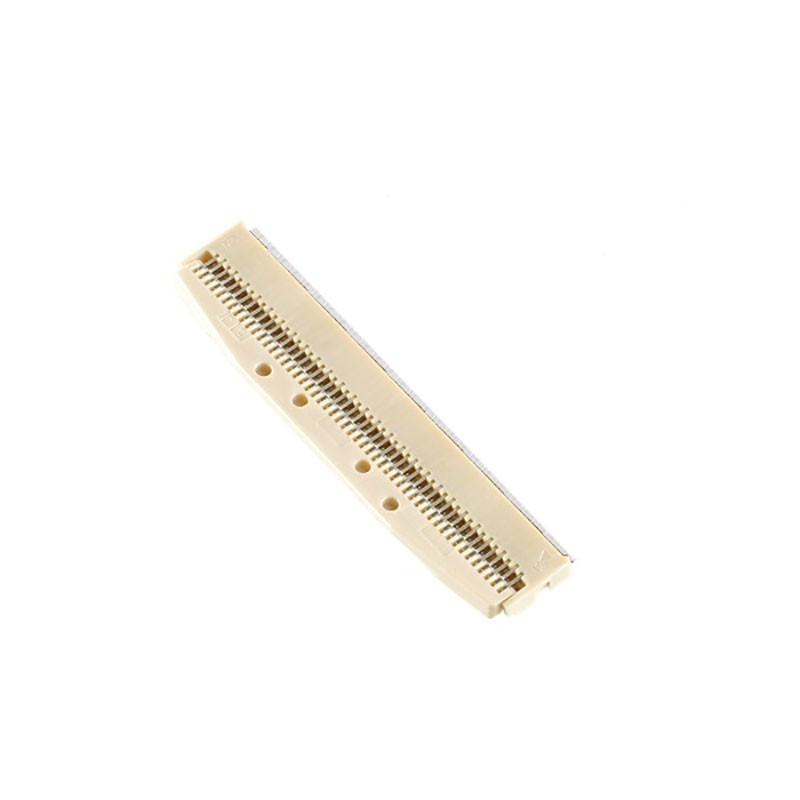

    10 pcs : 20538-033E-01 - MINIFLEX 3-BFN L 33P
    • 10 pcs : 20538-033E-01 - MINIFLEX 3-BFN L 33P

    10 pcs : 20538-033E-01 - MINIFLEX 3-BFN L 33P

    10AllpartsUK537820538033E01TRND
    I-PEX
    £41.85
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    33 Position FFC, FPC Connector Contacts, Top and Bottom 0.012' (0.30mm) Surface Mount, Right Angle
    Product Details
    I-PEX
    10AllpartsUK537820538033E01TRND
    20538-033E-01
    3 Items

    Data sheet

    Manufacturer
    I-PEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    33
    Series
    MINIFLEX® 3-BFN
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    -
    Pitch
    0.012' (0.30mm)
    Quantity
    10
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    300mA per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    4.00µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.90mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Beige
    Mating Cycles
    20
