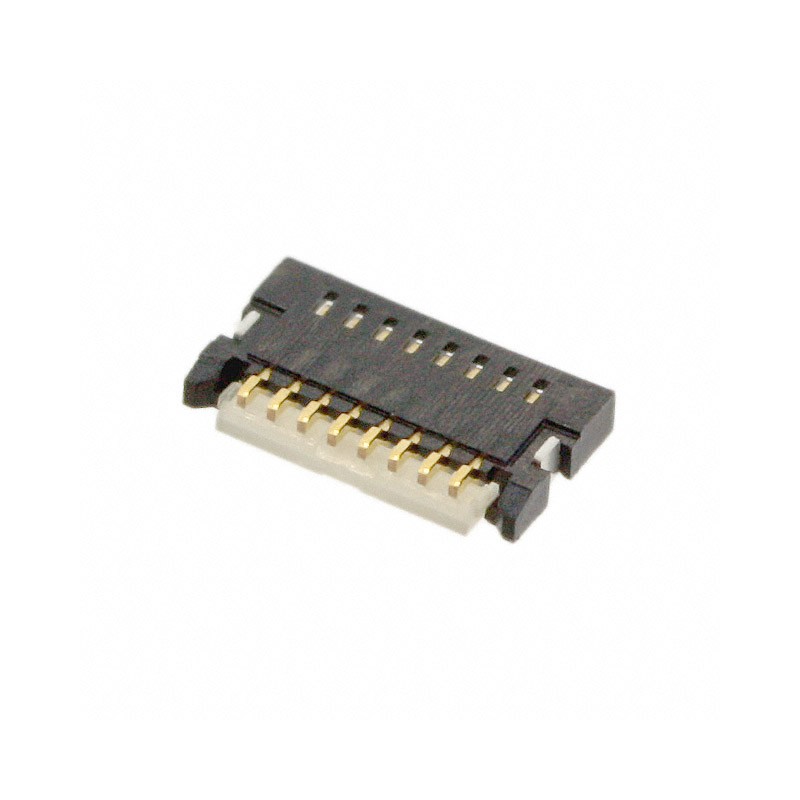

    10 pcs : 5014610891 - CONN FPC BOTTOM 8POS 0.5MM R/A
    • 10 pcs : 5014610891 - CONN FPC BOTTOM 8POS 0.5MM R/A

    10 pcs : 5014610891 - CONN FPC BOTTOM 8POS 0.5MM R/A

    10electronicpartsUKWM14413TRND
    MOLEX
    £39.99
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    10electronicpartsUKWM14413TRND
    5014610891
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    8
    Series
    BackFlip 501461
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Polyamide (PA), Nylon, Glass Filled
    Termination
    Solder
    Features
    -
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    Polyamide (PA46), Nylon 4/6, Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.3A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.12mm
    Height Above Board
    0.031' (0.80mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 HB
    Housing Color
    Black
    Actuator Color
    White
    Mating Cycles
    20
