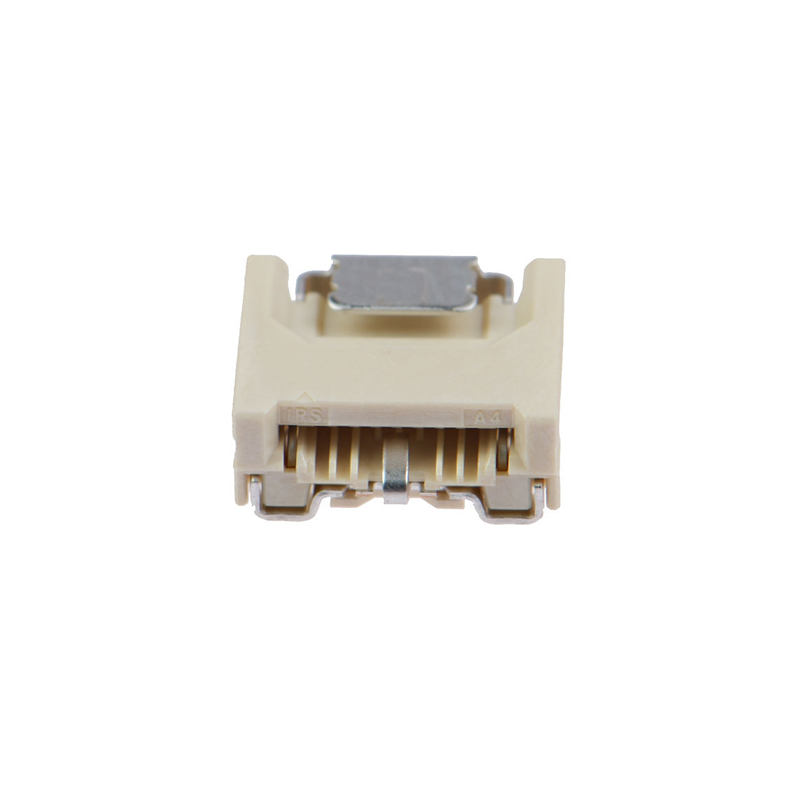

    10 pcs : IMSA-11501S-08C-GFN1 - CONN FFC BOTTOM 8POS 0.5MM R/A
    • 10 pcs : IMSA-11501S-08C-GFN1 - CONN FFC BOTTOM 8POS 0.5MM R/A

    10 pcs : IMSA-11501S-08C-GFN1 - CONN FFC BOTTOM 8POS 0.5MM R/A

    10AllpartsUK2248IMSA11501S08CGFN1TRND
    £36.27
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    IRISO USA Inc.
    10AllpartsUK2248IMSA11501S08CGFN1TRND
    IMSA-11501S-08C-GFN1
    3 Items

    Data sheet

    Manufacturer
    IRISO USA Inc.
    Operating temperature
    -
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    8
    Series
    11501
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Quantity
    10
    Actuator Material
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.134' (3.40mm)
    Locking Feature
    -
    Cable End Type
    Notched
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    -
