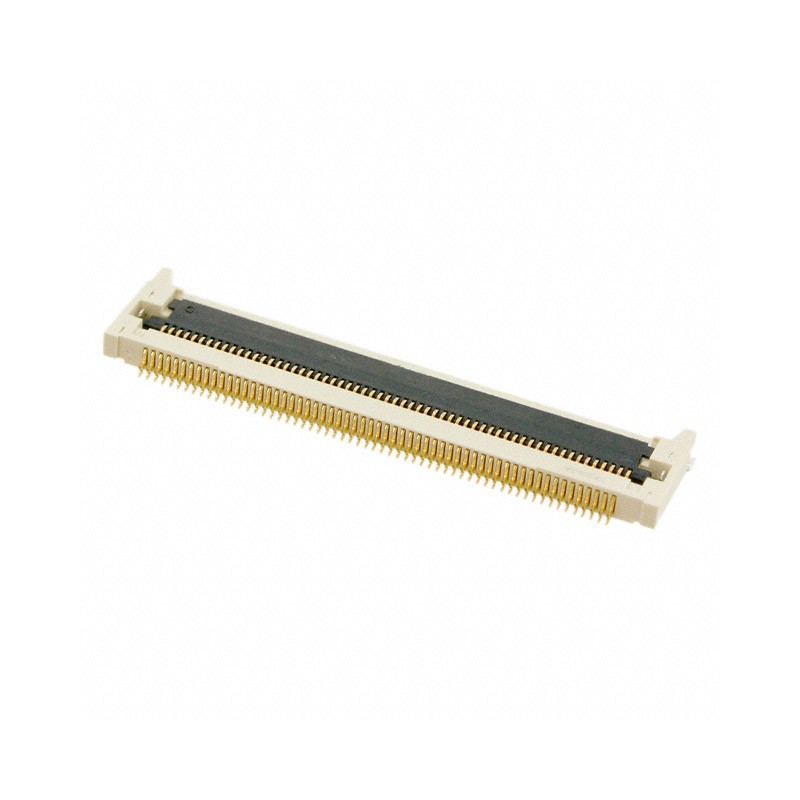

    1 pcs : FF0360SA1 - CONN FPC BOTTOM 60POS 0.5MM R/A
    • 1 pcs : FF0360SA1 - CONN FPC BOTTOM 60POS 0.5MM R/A

    1 pcs : FF0360SA1 - CONN FPC BOTTOM 60POS 0.5MM R/A

    1electronicparts6702084ND
    £31.38
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    60 Position FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    JAE Electronics
    1electronicparts6702084ND
    FF0360SA1
    3 Items

    Data sheet

    Manufacturer
    JAE Electronics
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    60
    Series
    FF03
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Actuator Material
    Polyamide (PA), Nylon, Glass Filled
    Packaging
    Strip
    Base Product Number
    FF0360SA
    Current Rating (Amps)
    0.5A per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    -
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.079' (2.00mm)
    Locking Feature
    Rotary Lock
    Cable End Type
    Straight
    Material Flammability Rating
    -
    Housing Color
    White
    Actuator Color
    Black
    Mating Cycles
    20
