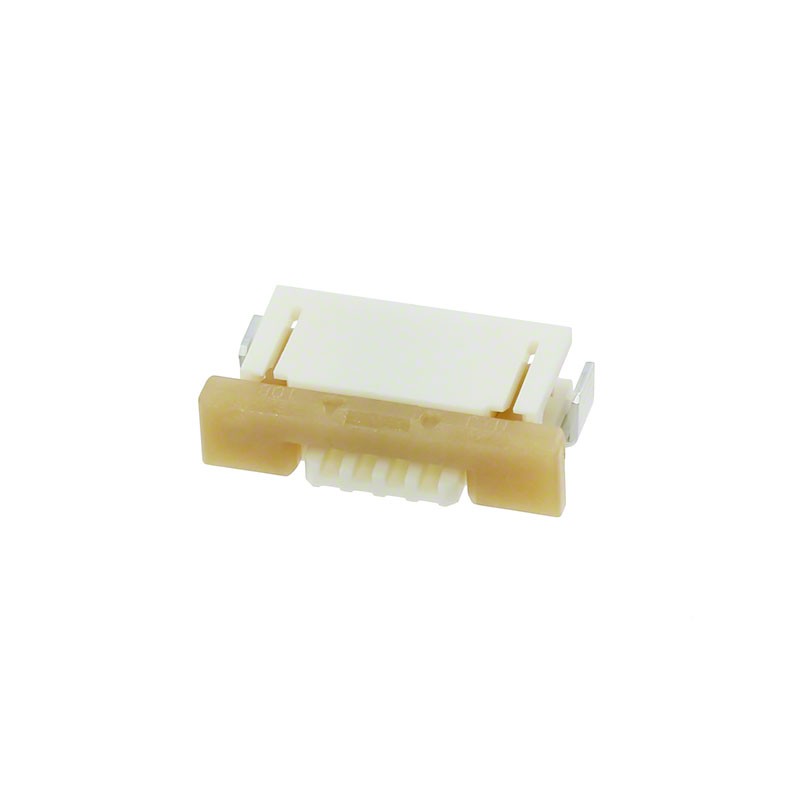

    1 pcs : 0522710479 - CONN FPC BOTTOM 4POS 1MM R/A
    • 1 pcs : 0522710479 - CONN FPC BOTTOM 4POS 1MM R/A

    1 pcs : 0522710479 - CONN FPC BOTTOM 4POS 1MM R/A

    1AllpartsWM7954TRND
    MOLEX
    £9.92
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    4 Position FPC Connector Contacts, Bottom 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    1AllpartsWM7954TRND
    0522710479
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    4
    Series
    52271
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Polyamide (PA46), Nylon 4/6
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    052271
    Current Rating (Amps)
    0.5A
    Contact Finish
    Tin Bismuth
    Contact Finish Thickness
    39.4µin (1.00µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.118' (3.00mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    30
