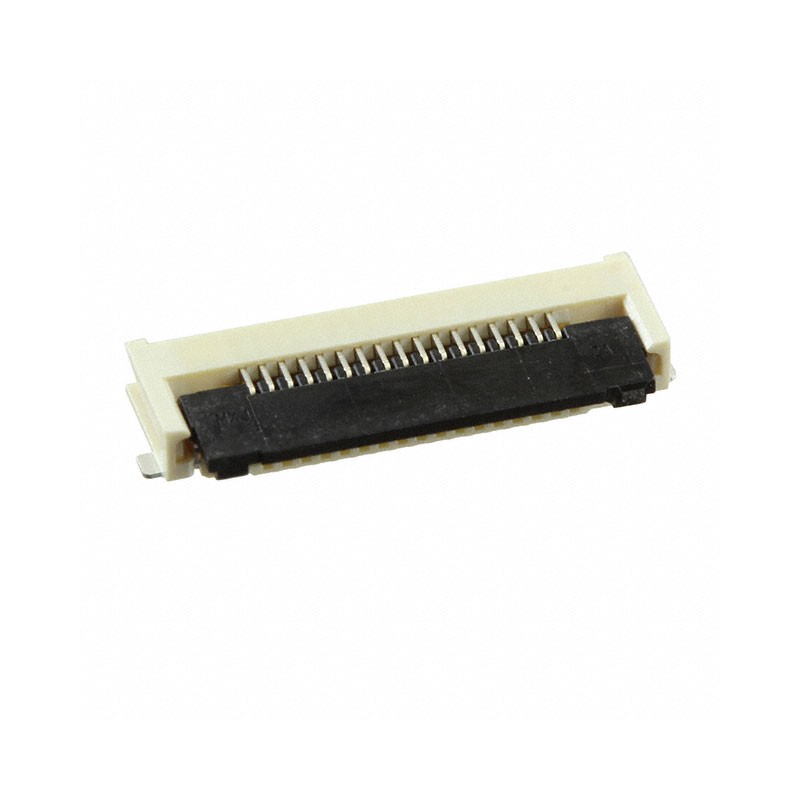

    1 pcs : 5051101792 - CONN FFC BOTTOM 17POS 0.5MM R/A
    • 1 pcs : 5051101792 - CONN FFC BOTTOM 17POS 0.5MM R/A

    1 pcs : 5051101792 - CONN FFC BOTTOM 17POS 0.5MM R/A

    1AllpartsWM12373TRND
    MOLEX
    £9.44
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    17 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    1AllpartsWM12373TRND
    5051101792
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    17
    Series
    Easy-On FD19 505110
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Actuator Material
    Polyamide (PA), Nylon, Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    505110
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    1.97µin (0.050µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.075' (1.90mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tabbed, Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Beige
    Actuator Color
    Black
    Mating Cycles
    25
