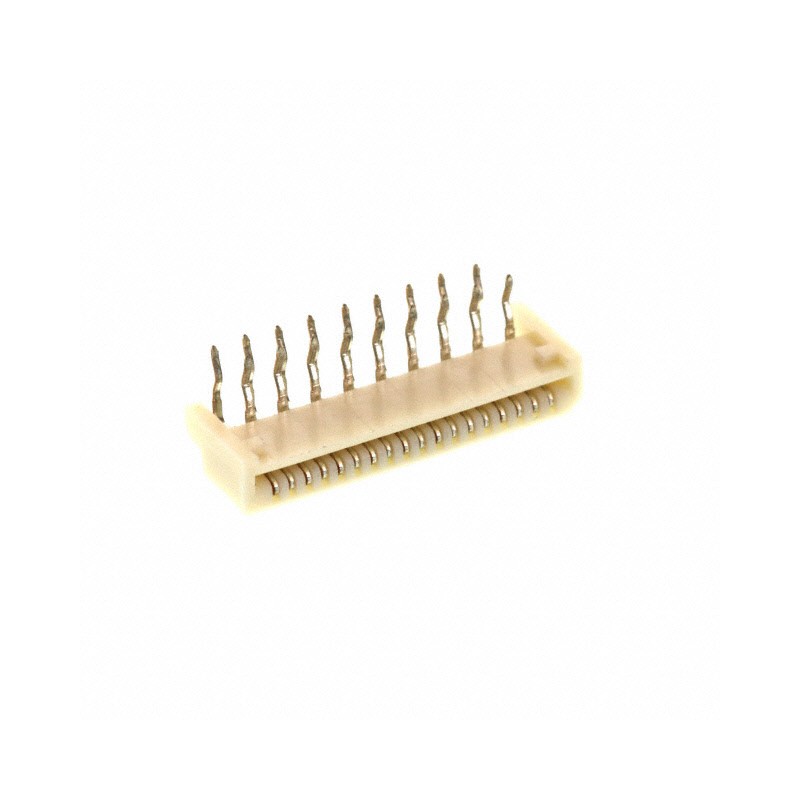

    1 pcs : 0528071810 - CONN FPC TOP 18POS 1MM R/A
    • 1 pcs : 0528071810 - CONN FPC TOP 18POS 1MM R/A

    1 pcs : 0528071810 - CONN FPC TOP 18POS 1MM R/A

    1AllpartsWM11040ND
    MOLEX
    £9.44
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    18 Position FPC Connector Contacts, Top 0.039' (1.00mm) Through Hole, Right Angle
    Product Details
    MOLEX
    1AllpartsWM11040ND
    0528071810
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -20°C ~ 80°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    18
    Series
    52807
    Voltage Rating
    50V
    Mounting Type
    Through Hole, Right Angle
    Housing Material
    Polyphenylene Sulfide (PPS)
    Termination
    Kinked Pin
    Features
    -
    Pitch
    0.039' (1.00mm)
    Actuator Material
    -
    Packaging
    Tray
    Base Product Number
    052807
    Current Rating (Amps)
    0.5A
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.142' (3.60mm)
    Locking Feature
    -
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    -
