    1 pcs : 0512810598 - CONN FFC FPC 5POS 0.5MM R/A
    • 1 pcs : 0512810598 - CONN FFC FPC 5POS 0.5MM R/A

    1 pcs : 0512810598 - CONN FFC FPC 5POS 0.5MM R/A

    1Allparts9000512810598TRND
    MOLEX
    £9.04
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description

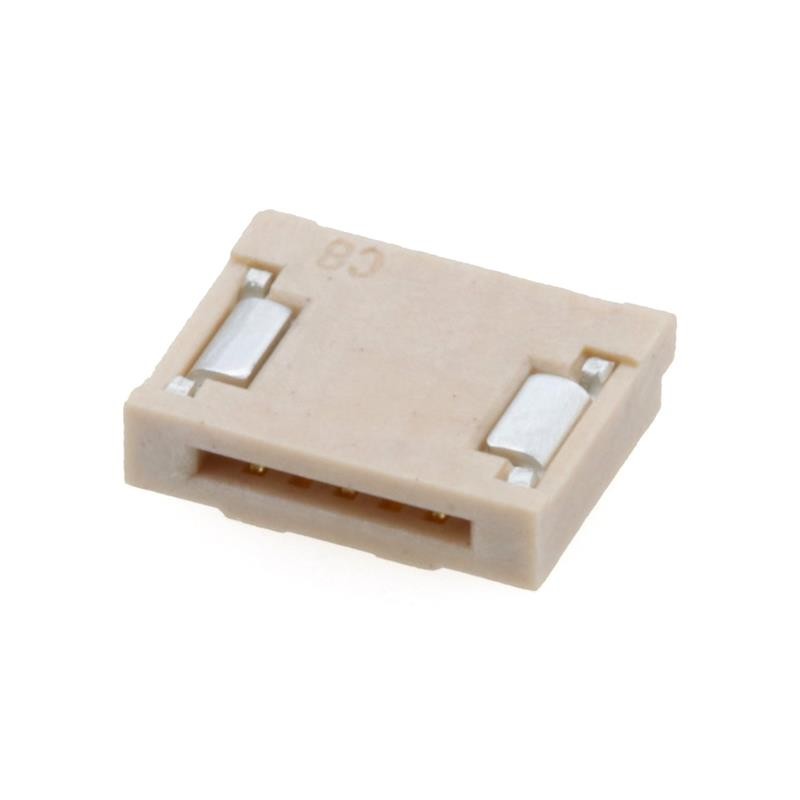

    5 Position FFC, FPC Connector Contacts, Top and Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    MOLEX
    1Allparts9000512810598TRND
    0512810598
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -20°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    5
    Series
    Easy-On 51281
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.020' (0.50mm)
    Actuator Material
    -
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    051281
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.94µin (0.10µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.047' (1.20mm)
    Locking Feature
    -
    Cable End Type
    Straight, Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    -
    Mating Cycles
    20
