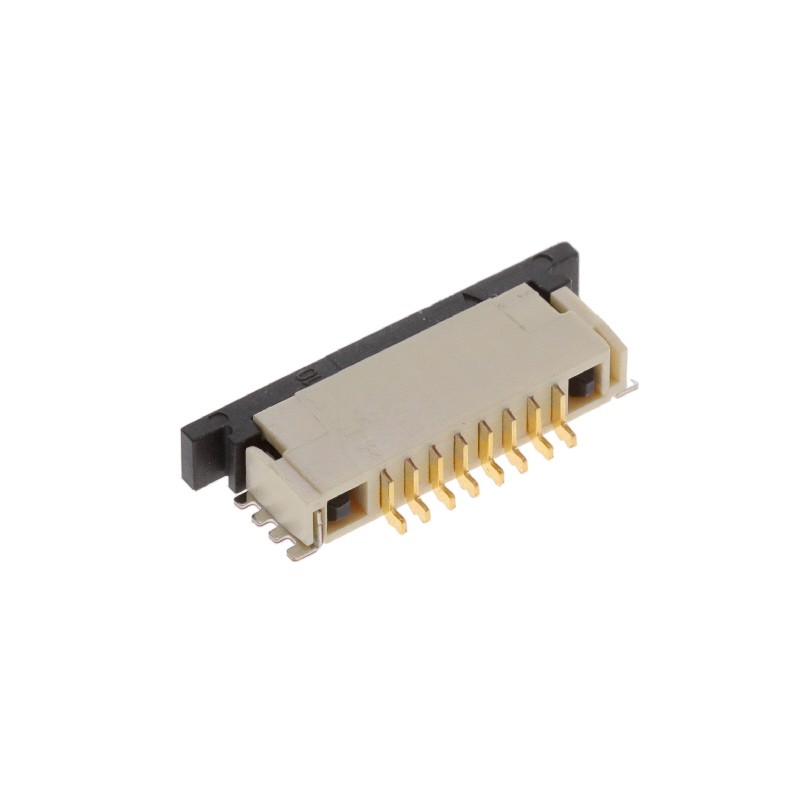

    1 pcs : 1735265-8 - CONN FPC BOTTOM 8POS 1MM R/A
    • 1 pcs : 1735265-8 - CONN FPC BOTTOM 8POS 1MM R/A

    1 pcs : 1735265-8 - CONN FPC BOTTOM 8POS 1MM R/A

    1AllpartsA135220TRND
    £9.04
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FPC Connector Contacts, Bottom 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    TE Connectivity AMP Connectors
    1AllpartsA135220TRND
    1735265-8
    3 Items

    Data sheet

    Manufacturer
    TE Connectivity AMP Connectors
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    8
    Series
    -
    Voltage Rating
    -
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Actuator Material
    Polyphthalamide (PPA), Glass Filled
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    1735265
    Current Rating (Amps)
    -
    Contact Finish
    Gold
    Contact Finish Thickness
    Flash
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.101' (2.56mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    -
