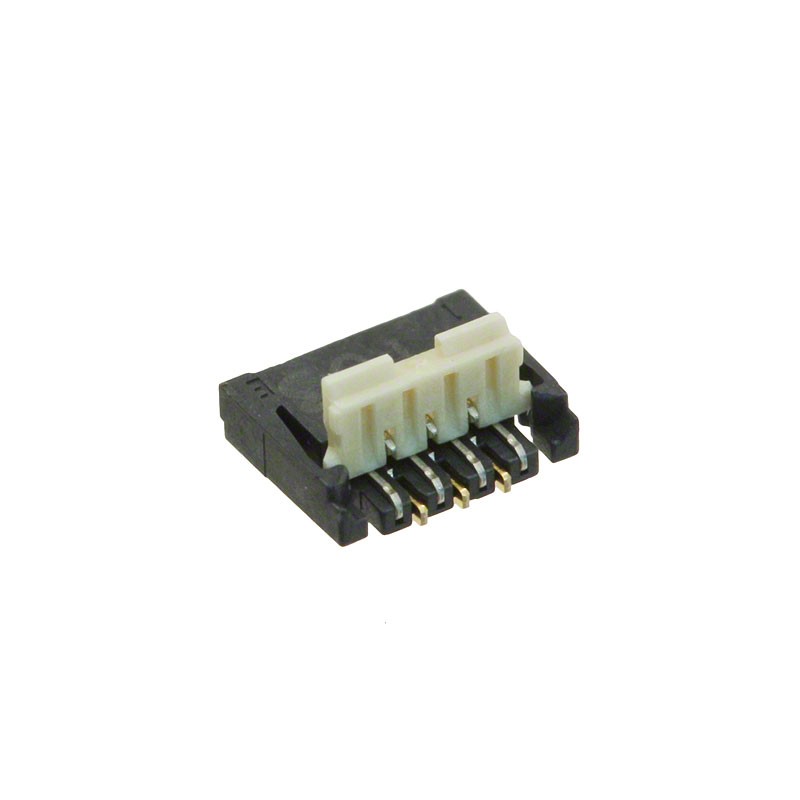

    1 pcs : AYF330735 - CONN FPC 7POS 0.3MM R/A
    • 1 pcs : AYF330735 - CONN FPC 7POS 0.3MM R/A

    1 pcs : AYF330735 - CONN FPC 7POS 0.3MM R/A

    1Allparts25530512ND
    £9.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    7 Position FPC Connector Contacts, Top and Bottom 0.012' (0.30mm) Surface Mount, Right Angle
    Product Details
    Panasonic Electric Works
    1Allparts25530512ND
    AYF330735
    3 Items

    Data sheet

    Manufacturer
    Panasonic Electric Works
    Operating temperature
    -55°C ~ 85°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    7
    Series
    Y3B
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    -
    Pitch
    0.012' (0.30mm)
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.2A per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    Flash
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.20mm
    Height Above Board
    0.035' (0.88mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    20
