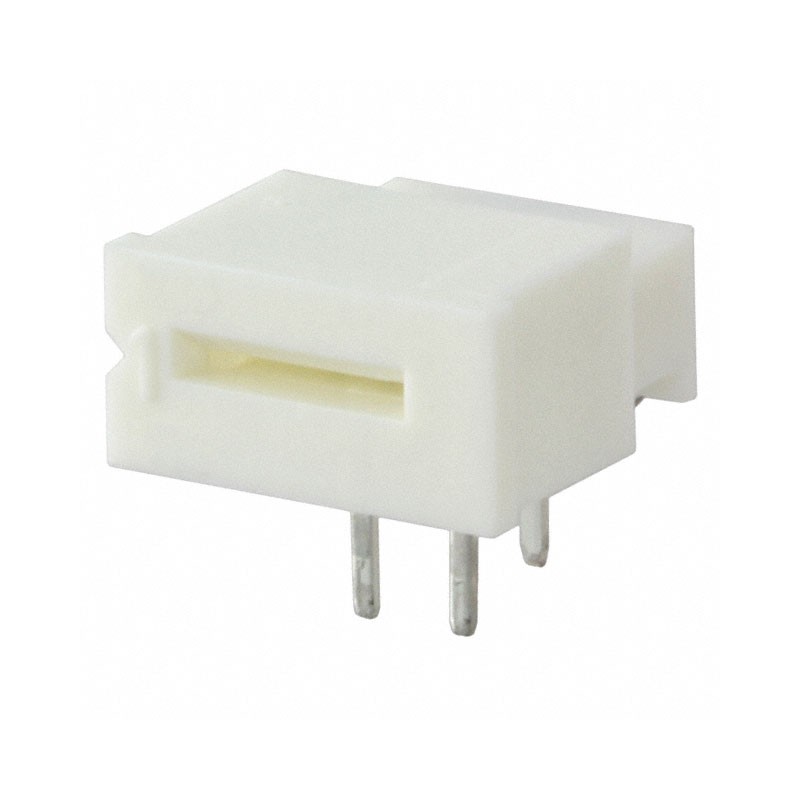

    1 pcs : 0039532034 - CONN FFC FPC TOP 3POS 1.25MM R/A
    • 1 pcs : 0039532034 - CONN FFC FPC TOP 3POS 1.25MM R/A

    1 pcs : 0039532034 - CONN FFC FPC TOP 3POS 1.25MM R/A

    1AllpartsWM14521ND
    MOLEX
    £9.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    3 Position FFC, FPC Connector Contacts, Top 0.049' (1.25mm) Through Hole, Right Angle
    Product Details
    MOLEX
    1AllpartsWM14521ND
    0039532034
    3 Items

    Data sheet

    Manufacturer
    MOLEX
    Operating temperature
    -20°C ~ 80°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    3
    Series
    5597
    Voltage Rating
    200V
    Mounting Type
    Through Hole, Right Angle
    Housing Material
    Polybutylene Terephthalate (PBT), Polyester
    Termination
    Solder
    Features
    Zero Insertion Force (ZIF)
    Pitch
    0.049' (1.25mm)
    Actuator Material
    Polybutylene Terephthalate (PBT), Polyester
    Packaging
    Tray
    Base Product Number
    003953
    Current Rating (Amps)
    1A
    Contact Finish
    Tin Bismuth
    Contact Finish Thickness
    39.4µin (1.00µm)
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Top
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.213' (5.40mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Straight
    Material Flammability Rating
    UL94 V-0
    Housing Color
    -
    Actuator Color
    -
    Mating Cycles
    30
