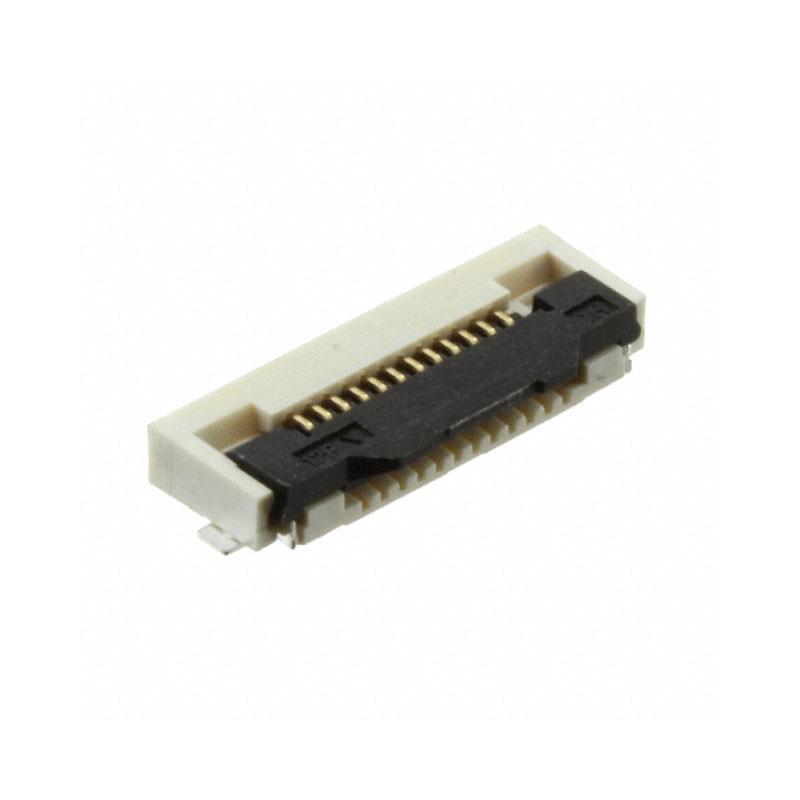

    1 pcs : 04 6806 012 000 846+ - CONN FFC BOTTOM 12POS 0.5MM R/A
    • 1 pcs : 04 6806 012 000 846+ - CONN FFC BOTTOM 12POS 0.5MM R/A

    1 pcs : 04 6806 012 000 846+ - CONN FFC BOTTOM 12POS 0.5MM R/A

    1Allparts478046806012000846+TRND
    £8.92
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    12 Position FFC, FPC Connector Contacts, Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    KYOCERA AVX
    1Allparts478046806012000846+TRND
    04 6806 012 000 846+
    3 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    12
    Series
    6806
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Plastic
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Actuator Material
    Plastic
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    0.5A per Contact
    Contact Finish
    Gold
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.069' (1.75mm)
    Locking Feature
    Flip Lock
    Cable End Type
    Tabbed
    Material Flammability Rating
    UL94 V-0
    Housing Color
    White
    Actuator Color
    Black
    Mating Cycles
    -
